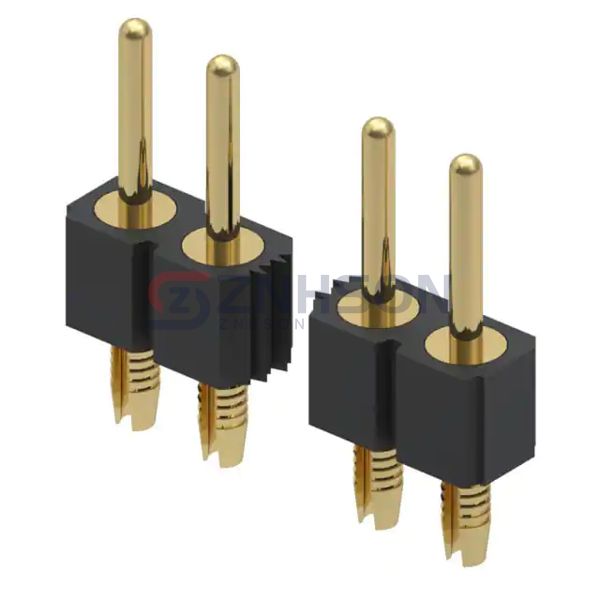

800-10-022-61-001000
Mill-Max Manufacturing Corp.
Mill-Max Manufacturing Corp.
CONN HEADER VERT 22POS 2.54MM
$5.77
Available to order
Reference Price (USD)
1+
$4.98000
10+
$4.77900
25+
$4.38040
50+
$4.18140
100+
$3.98230
250+
$3.48448
500+
$3.38494
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the 800-10-022-61-001000 rectangular connector header from Mill-Max Manufacturing Corp. for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Mill-Max Manufacturing Corp. is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 22
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Press-Fit, Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.191" (4.85mm)
- Contact Length - Post: 0.104" (2.64mm)
- Overall Contact Length: 0.405" (10.29mm)
- Insulation Height: 0.110" (2.79mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Brass Alloy
- Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
