802-10-056-10-002000
Mill-Max Manufacturing Corp.
Mill-Max Manufacturing Corp.

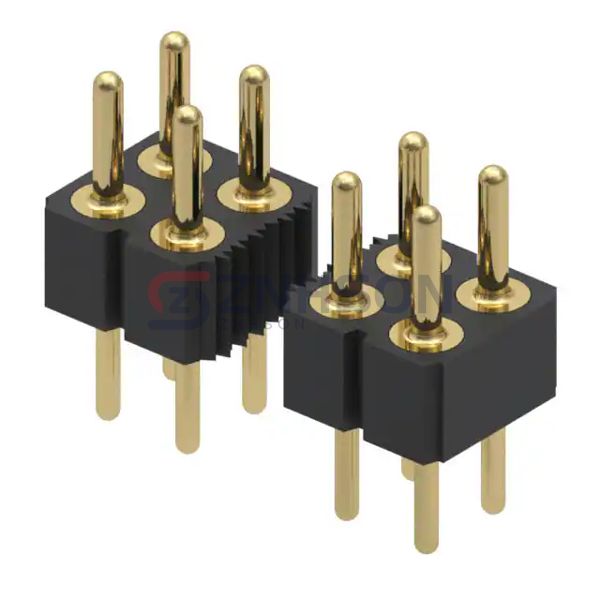

CONN HEADER VERT 56POS 2.54MM
$8.67
Available to order
Reference Price (USD)
1+
$8.02000
10+
$7.68200
25+
$7.01400
50+
$6.68020
100+
$6.34610
250+
$5.67808
500+
$5.34408
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 802-10-056-10-002000 male pin header by Mill-Max Manufacturing Corp. provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Mill-Max Manufacturing Corp. guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 56
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.142" (3.61mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: 0.385" (9.77mm)
- Insulation Height: 0.110" (2.79mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Brass Alloy
- Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
