803-43-034-30-001000
Mill-Max Manufacturing Corp.
Mill-Max Manufacturing Corp.

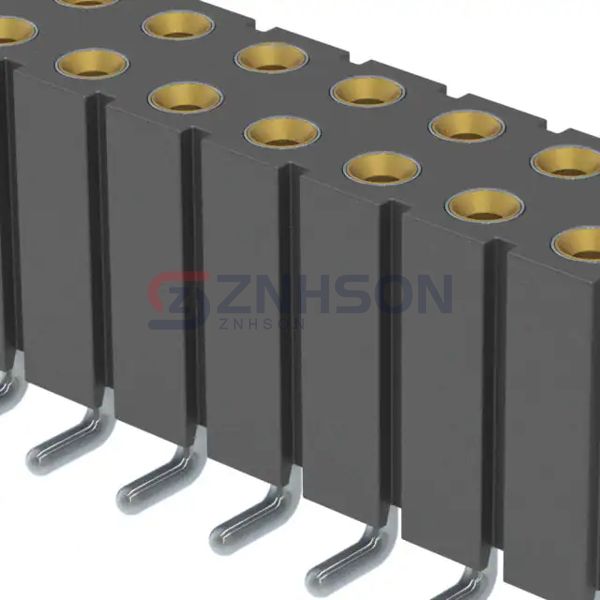

CONN RCPT 34POS 0.1 GOLD SMD
$11.36
Available to order
Reference Price (USD)
1+
$9.19000
10+
$8.78600
25+
$7.98720
50+
$7.58760
100+
$7.38800
250+
$6.58928
500+
$6.18992
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 803-43-034-30-001000 Mill-Max Manufacturing Corp. Rectangular Connectors - Headers, Receptacles, and Female Sockets offer superior connectivity solutions for modern electronics. Designed with versatility in mind, these connectors support high-speed data transfer and power delivery. Their compact design and rugged build make them suitable for aerospace, military, and IoT applications. Whether you need board-to-board, cable-to-board, or wire-to-wire connections, Mill-Max Manufacturing Corp. provides reliable options. Examples include avionics systems, defense equipment, and smart home devices.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Female Socket
- Style: Board to Board
- Number of Positions: 34
- Number of Positions Loaded: All
- Pitch - Mating: 0.100" (2.54mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Insulation Color: Black
- Insulation Height: 0.338" (8.59mm)
- Contact Length - Post: -
- Operating Temperature: -55°C ~ 125°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Tin
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: -
- Current Rating (Amps): 4.5A
- Voltage Rating: -
