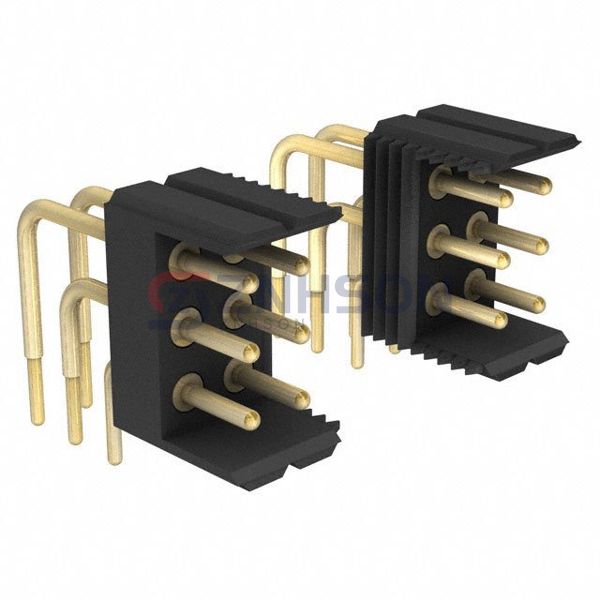

804-V3-093-22-002101

Preci-Dip

Manufacturer

Preci-Dip

Description:

CONN HEADER R/A 93POS 2.54MM

Datasheet:

804-V3-093-22-002101 Datasheet

$17.48

Available to order

Reference Price (USD)

40+

$14.26525

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Enhance your electronic assemblies with the 804-V3-093-22-002101 rectangular connector header from Preci-Dip. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the 804-V3-093-22-002101 meets the highest industry standards. Preci-Dip provides connectors that ensure long-term reliability and performance.

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 93
Number of Rows: 3
Row Spacing - Mating: 0.100" (2.54mm)
Number of Positions Loaded: All
Style: Board to Board
Shrouding: Unshrouded
Mounting Type: Through Hole, Right Angle
Termination: Solder
Fastening Type: Push-Pull
Contact Length - Mating: 0.141" (3.60mm)
Contact Length - Post: 0.126" (3.20mm)
Overall Contact Length: -
Insulation Height: 0.372" (9.44mm)
Contact Shape: Circular
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Contact Material: Brass
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features: -
Operating Temperature: -55°C ~ 125°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): 3A
Voltage Rating: 150VDC
