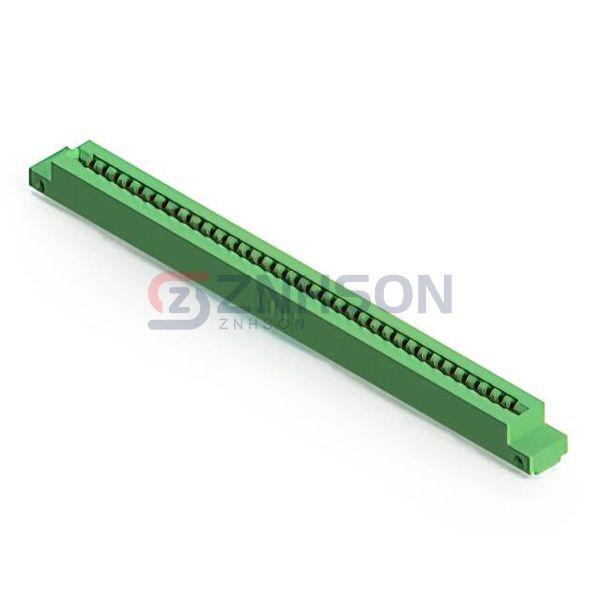

807-036-554-112
EDAC Inc.

EDAC Inc.
807 HIGH TEMP' SERIES (.156" (3.
$246.20
Available to order
Reference Price (USD)
1+
$246.19680
500+
$243.734832
1000+
$241.272864
1500+
$238.810896
2000+
$236.348928
2500+
$233.88696
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 807-036-554-112 series by EDAC Inc. represents the pinnacle of Card Edge Connector technology. Designed for precision and longevity, these Edgeboard Connectors are essential components in medical imaging equipment, broadcast technology, and defense systems. Their robust construction and high-speed capabilities ensure they meet the rigorous demands of these specialized fields.
Specifications
- Product Status: Active
- Card Type: Non Specified - Dual Edge
- Gender: Female
- Number of Positions/Bay/Row: 36
- Number of Positions: 72
- Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows: 2
- Pitch: 0.156" (3.96mm)
- Read Out: Dual
- Features: -
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
- Contact Type: Semi Bellows
- Color: Green
- Flange Feature: Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia
- Operating Temperature: -40°C ~ 125°C
