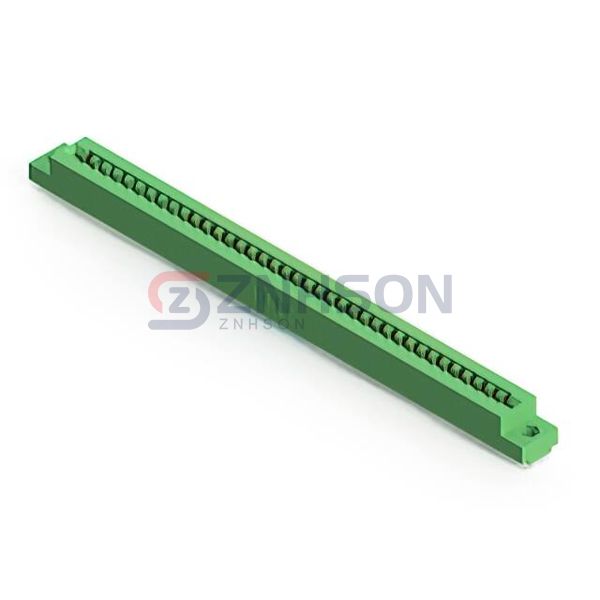

807-076-559-204
EDAC Inc.
EDAC Inc.
CONN EDGE DUAL FMALE 76POS 0.156
$124.98
Available to order
Reference Price (USD)
1+
$124.97640
500+
$123.726636
1000+
$122.476872
1500+
$121.227108
2000+
$119.977344
2500+
$118.72758
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 807-076-559-204 series by EDAC Inc. represents the pinnacle of Card Edge Connector technology. Designed for precision and longevity, these Edgeboard Connectors are essential components in medical imaging equipment, broadcast technology, and defense systems. Their robust construction and high-speed capabilities ensure they meet the rigorous demands of these specialized fields.
Specifications
- Product Status: Active
- Card Type: Non Specified - Dual Edge
- Gender: Female
- Number of Positions/Bay/Row: 38
- Number of Positions: 76
- Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows: 2
- Pitch: 0.156" (3.96mm)
- Read Out: Single
- Features: -
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
- Contact Type: Semi Bellows
- Color: Green
- Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
- Operating Temperature: -40°C ~ 125°C
