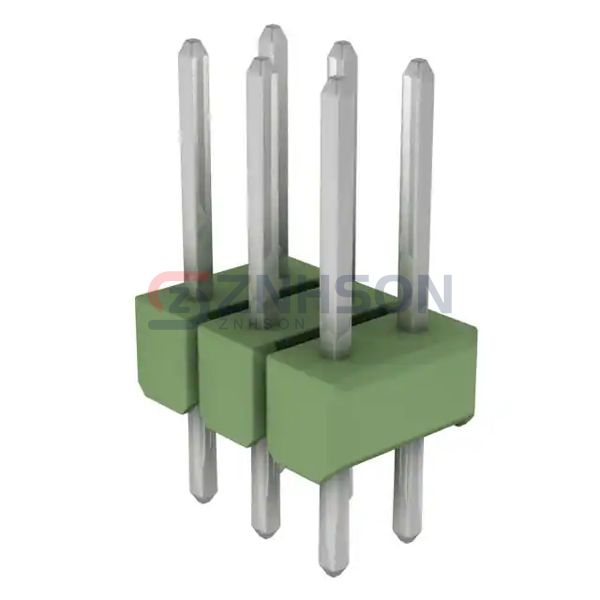

826925-3
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 6POS 2.54MM
$0.83
Available to order
Reference Price (USD)
1+
$0.62000
10+
$0.58000
100+
$0.44470
500+
$0.38666
1,000+
$0.31899
5,000+
$0.28033
10,000+
$0.26100
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the 826925-3 rectangular connector header from TE Connectivity AMP Connectors, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the 826925-3 adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. TE Connectivity AMP Connectors guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 6
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.264" (6.70mm)
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: 0.500" (12.70mm)
- Insulation Height: 0.110" (2.79mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 78.7µin (2.00µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Green
- Current Rating (Amps): 5A
- Voltage Rating: -
