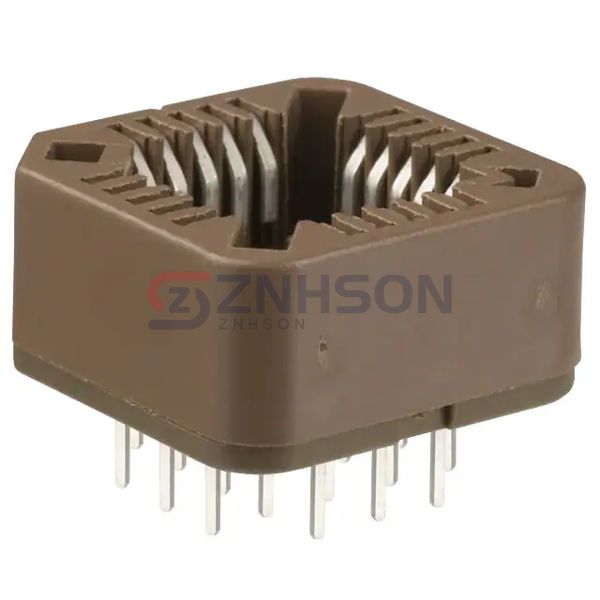

8420-11B1-RK-TP
3M
3M
CONN SOCKET PLCC 20POS TIN
$1.58
Available to order
Reference Price (USD)
1+
$1.37000
10+
$1.20400
25+
$1.13280
50+
$1.08560
100+
$1.03840
250+
$0.94400
500+
$0.84960
1,872+
$0.70800
3,744+
$0.68440
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 8420-11B1-RK-TP by 3M is a top-quality socket designed for ICs and transistors, offering exceptional reliability and ease of use. These sockets feature a robust design that ensures stable connections and protects components during insertion and removal. Ideal for high-frequency and high-speed applications, the 8420-11B1-RK-TP delivers superior signal integrity. Common uses include computer motherboards, medical devices, and aerospace systems. With 3M's commitment to excellence, this socket is a trusted choice for engineers and technicians worldwide. Whether for prototyping or mass production, the 8420-11B1-RK-TP provides a seamless solution for your interconnect requirements.
Specifications
- Product Status: Active
- Type: PLCC
- Number of Positions or Pins (Grid): 20 (4 x 5)
- Pitch - Mating: 0.050" (1.27mm)
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 160.0µin (4.06µm)
- Contact Material - Mating: Copper Alloy
- Mounting Type: Through Hole
- Features: Closed Frame
- Termination: Solder
- Pitch - Post: 0.100" (2.54mm)
- Contact Finish - Post: Tin
- Contact Finish Thickness - Post: 160.0µin (4.06µm)
- Contact Material - Post: Copper Alloy
- Housing Material: Polybutylene Terephthalate (PBT), Glass Filled
- Operating Temperature: -40°C ~ 105°C
