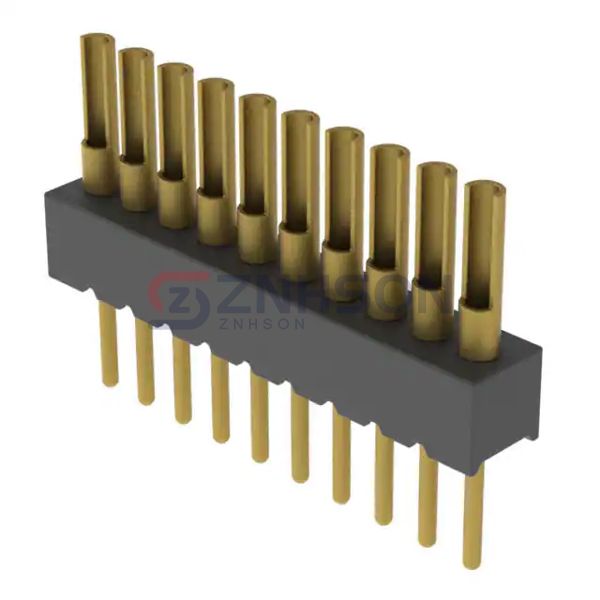

850-10-010-10-003000
Mill-Max Manufacturing Corp.
Mill-Max Manufacturing Corp.
CONN HEADER VERT 10POS 1.27MM
$6.04
Available to order
Reference Price (USD)
1+
$3.19000
39+
$2.80718
117+
$2.55197
507+
$2.16919
1,014+
$1.85020
5,031+
$1.65880
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the 850-10-010-10-003000 rectangular connector header from Mill-Max Manufacturing Corp.. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the 850-10-010-10-003000 meets the highest industry standards. Mill-Max Manufacturing Corp. provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 10
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.100" (2.54mm)
- Contact Length - Post: 0.122" (3.10mm)
- Overall Contact Length: 0.303" (7.70mm)
- Insulation Height: 0.084" (2.14mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Brass Alloy
- Insulation Material: Polyamide (PA46), Nylon 4/6
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
