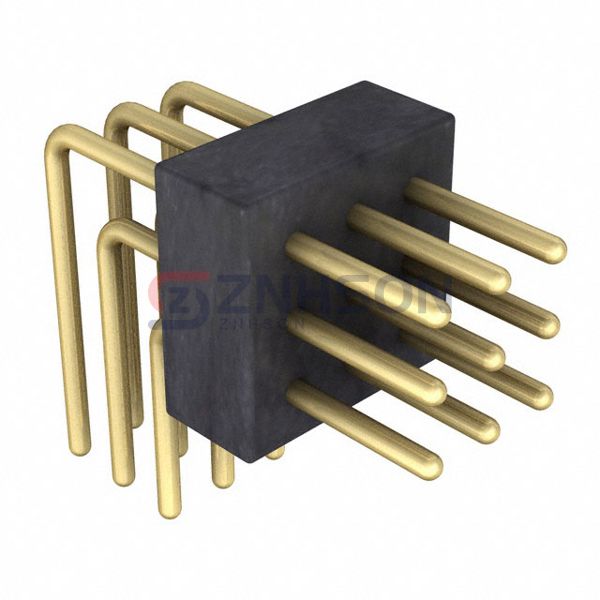

854-10-150-20-001101

Preci-Dip

Manufacturer

Preci-Dip

Description:

CONN HEADER R/A 150P 1.27MM

Datasheet:

854-10-150-20-001101 Datasheet

$16.95

Available to order

Reference Price (USD)

48+

$16.80125

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The 854-10-150-20-001101 by Preci-Dip is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 854-10-150-20-001101 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Preci-Dip ensures each connector meets rigorous quality standards for global compliance.

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.050" (1.27mm)
Number of Positions: 150
Number of Rows: 3
Row Spacing - Mating: 0.050" (1.27mm)
Number of Positions Loaded: All
Style: Board to Board
Shrouding: Unshrouded
Mounting Type: Through Hole, Right Angle
Termination: Solder
Fastening Type: Push-Pull
Contact Length - Mating: 0.118" (3.00mm)
Contact Length - Post: 0.126" (3.20mm)
Overall Contact Length: -
Insulation Height: 0.174" (4.42mm)
Contact Shape: Circular
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Contact Material: Brass
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features: -
Operating Temperature: -55°C ~ 125°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): 1A
Voltage Rating: 150VDC
