864B509
Winchester Interconnect
Winchester Interconnect

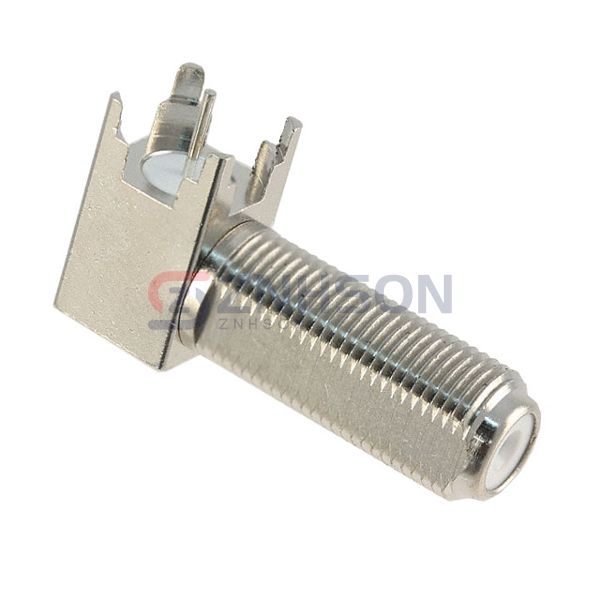

CONN F JACK R/A NON-CONSTANT PCB
$0.00
Available to order
Reference Price (USD)
1+
$3.48000
10+
$3.33600
100+
$2.78000
250+
$2.43252
500+
$2.36300
1,000+
$2.01550
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 864B509 by Winchester Interconnect redefines performance benchmarks for Coaxial Connectors (RF). These precision connectors utilize air dielectric designs where applicable to maximize high-frequency performance. The product family offers exceptional mechanical stability with torque retention features that prevent loosening in vibration-prone environments. Specialized versions include phase-stable, hermetic, and ultra-miniature designs. Dominant applications encompass: Microwave point-to-point links Satellite payload interconnects MRI coil interfaces Spectrum monitoring systems. The 864B509 stands out with its ultra-low PIM characteristics (<-160dBc), making it the connector of choice for modern multi-operator cellular infrastructure deployments.
Specifications
- Product Status: Active
- Connector Style: F Type
- Connector Type: Jack, Female Socket
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: Non-Constant
- Mounting Type: Through Hole, Right Angle
- Mounting Feature: -
- Cable Group: -
- Fastening Type: Threaded
- Frequency - Max: 500 MHz
- Number of Ports: 1
- Features: -
- Housing Color: Silver
- Ingress Protection: -
- Center Contact Material: Brass
