87402-140
Amphenol ICC (FCI)
Amphenol ICC (FCI)
CONN HEADER R/A 80POS 1.27MM
$18.98
Available to order
Reference Price (USD)
1,260+
$8.88945
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

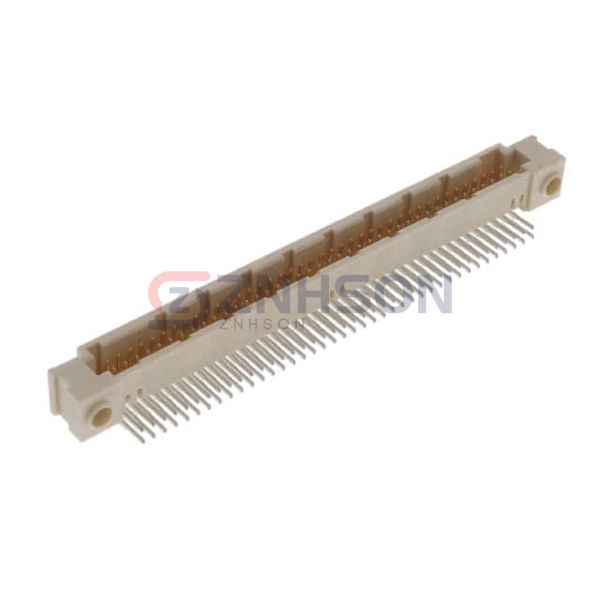

Upgrade your electronic designs with the 87402-140 rectangular connector header by Amphenol ICC (FCI). These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the 87402-140 ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Amphenol ICC (FCI) for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 80
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.130" (3.30mm)
- Contact Length - Post: 0.075" (1.91mm)
- Overall Contact Length: -
- Insulation Height: 0.240" (6.10mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold or Gold, GXT™
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin-Lead
- Contact Material: -
- Insulation Material: Thermoplastic, Glass Filled
- Features: Mounting Flange
- Operating Temperature: -55°C ~ 130°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 1A (DC)
- Voltage Rating: -
