87402-515LF
Amphenol ICC (FCI)
Amphenol ICC (FCI)

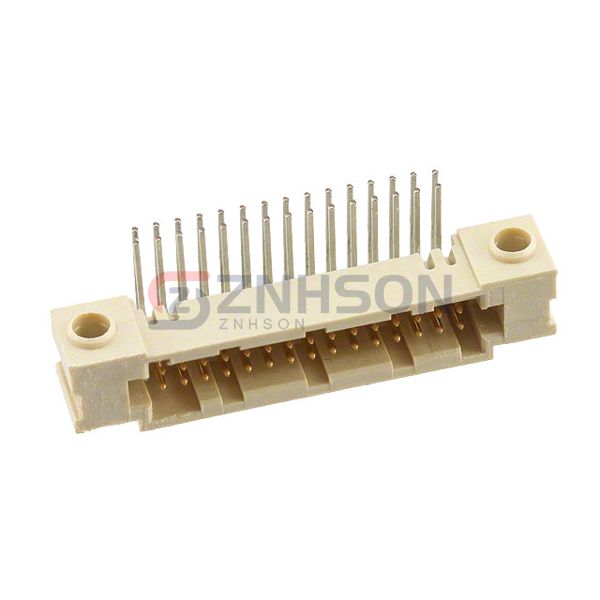

CONN HEADER R/A 30POS 1.27MM
$9.39
Available to order
Reference Price (USD)
2,800+
$7.81125
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the 87402-515LF rectangular connector header from Amphenol ICC (FCI), a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the 87402-515LF adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Amphenol ICC (FCI) guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 30
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.130" (3.30mm)
- Contact Length - Post: 0.125" (3.18mm)
- Overall Contact Length: -
- Insulation Height: 0.240" (6.10mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold or Gold, GXT™
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: -
- Insulation Material: Thermoplastic, Glass Filled
- Features: Mounting Flange
- Operating Temperature: -55°C ~ 130°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 1A (DC)
- Voltage Rating: -
