890-18-036-10-001101
Preci-Dip
Preci-Dip
CONN HEADER VERT 36POS 2.54MM
$3.15
Available to order
Reference Price (USD)
250+
$2.26488
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 890-18-036-10-001101 by Preci-Dip is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Preci-Dip delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 36
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.236" (6.00mm)
- Contact Length - Post: 0.122" (3.10mm)
- Overall Contact Length: 0.458" (11.64mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon, Glass Filled
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: 150VDC
Related Products
TE Connectivity AMP Connectors
4-1971957-3
Amphenol Sine Systems Corp
ATM15-3P-BM02
HARTING
09185105911
Hirose Electric Co Ltd
DF3EA-6P-2V(21)
Samtec Inc.
FTSH-108-01-L-D-K
Samtec Inc.
FTSH-107-02-SM-D
Amphenol ICC (FCI)
68001-403HLF
Samtec Inc.

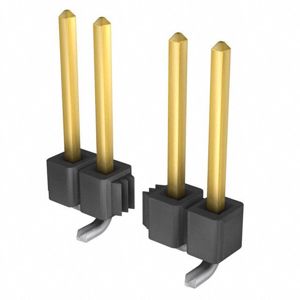

TSM-109-02-F-SV
Amphenol ICC (FCI)

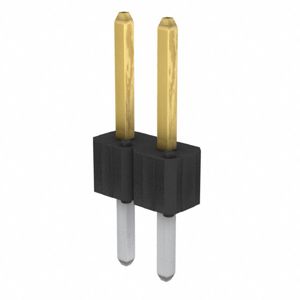

68002-202HLF
