892-18-028-10-003101
Preci-Dip
Preci-Dip

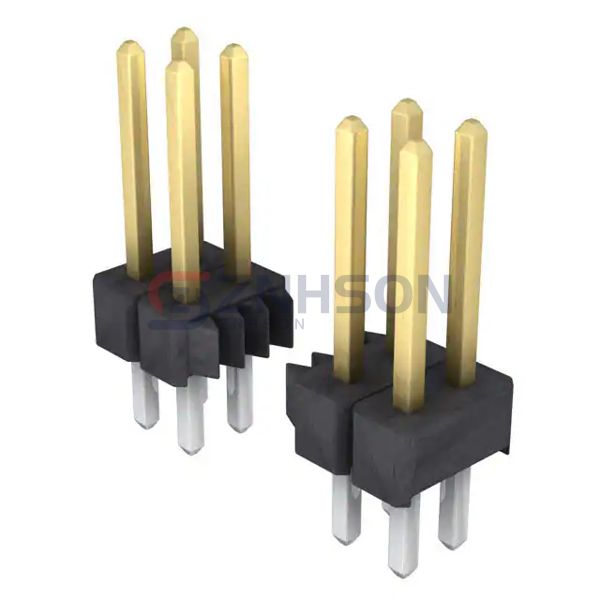

CONN HEADER VERT 28POS 2.54MM
$3.27
Available to order
Reference Price (USD)
220+
$2.35250
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 892-18-028-10-003101 by Preci-Dip is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 892-18-028-10-003101 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Preci-Dip ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 28
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.335" (8.51mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: 0.553" (14.04mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon, Glass Filled
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: 150VDC
