9-146305-0-39
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

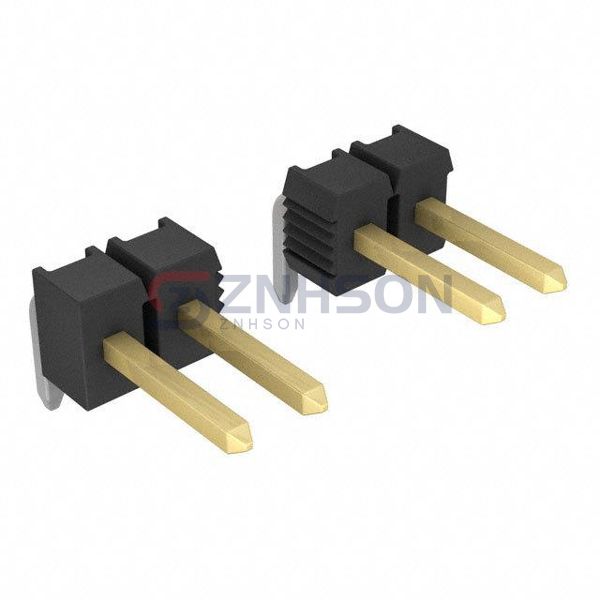

CONN HEADER R/A 39POS 2.54MM
$10.30
Available to order
Reference Price (USD)
1+
$9.52000
10+
$9.11000
25+
$8.28160
50+
$7.86740
100+
$7.66040
250+
$6.83224
500+
$6.41814
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the 9-146305-0-39 rectangular connector header by TE Connectivity AMP Connectors. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the 9-146305-0-39 ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust TE Connectivity AMP Connectors for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 39
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: -
- Insulation Height: 0.138" (3.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic, Glass Filled
- Features: -
- Operating Temperature: -65°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
TFM-110-02-L-D-A-K-TR
Samtec Inc.
ZLTMM-117-71-TM-D-700
Preci-Dip
350-80-150-01-666101
Samtec Inc.
TSM-113-01-G-DV
Sullins Connector Solutions
PEC26SBEN
Molex
1053092304
Samtec Inc.

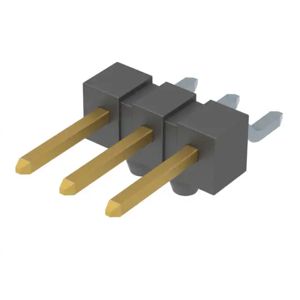

TSM-103-01-L-SH-A-K-TR
