901-10009-RFX
Amphenol RF
Amphenol RF

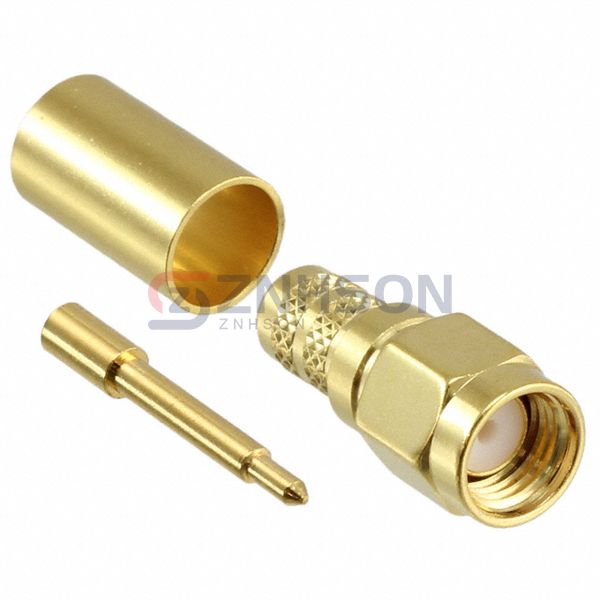

CONN SMA PLUG STR 50 OHM SOLDER
$11.22
Available to order
Reference Price (USD)
1+
$9.66000
10+
$9.24000
25+
$8.40000
50+
$7.98000
100+
$7.77000
250+
$6.93000
500+
$6.51000
1,000+
$5.75400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 901-10009-RFX from Amphenol RF represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The 901-10009-RFX variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: SMA
- Connector Type: Plug, Male Pin
- Contact Termination: Solder
- Shield Termination: Crimp
- Impedance: 50Ohm
- Mounting Type: Free Hanging (In-Line)
- Mounting Feature: -
- Cable Group: Belden 9258, LMR-240
- Fastening Type: Threaded
- Frequency - Max: 12.4 GHz
- Number of Ports: 1
- Features: -
- Housing Color: Gold
- Ingress Protection: -
- Center Contact Material: Brass
