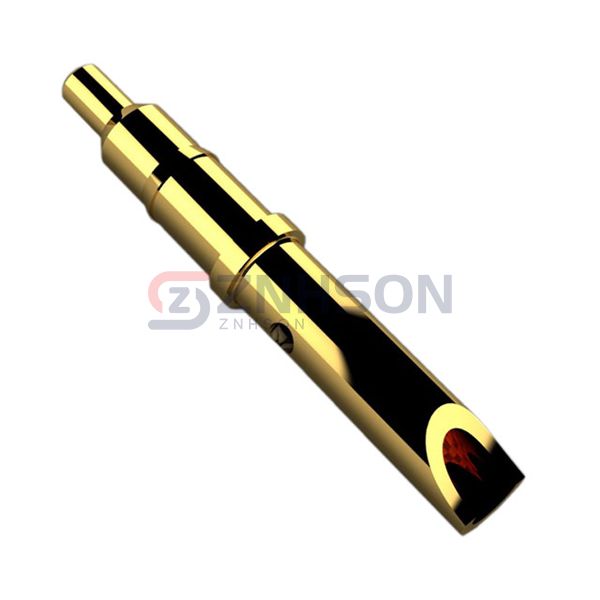

90101-AS
Preci-Dip
Preci-Dip
CONTACT SPRING LOADED SLDR CUP
$0.00
Available to order
Reference Price (USD)
1+
$1.01000
10+
$0.88600
25+
$0.83440
50+
$0.79960
100+
$0.76480
250+
$0.69528
500+
$0.62576
1,000+
$0.55622
2,500+
$0.50408
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 90101-AS by Preci-Dip sets new standards for high-current Spring Loaded Contacts in electric vehicle and energy storage applications. These 30A-rated Pressure Contacts incorporate thermal runaway protection and vibration-damping features critical for EV battery pack monitoring systems. Our specialized Pogo Pin series offers unparalleled safety with built-in current sensors and arc-suppression coatings. Primary applications include grid-scale battery maintenance platforms, hydrogen fuel cell stack testing, and hybrid aircraft power distribution verification. Real-world deployments feature in Formula E diagnostic tools and offshore wind turbine condition monitoring systems. 90101-AS's patented multi-point contact design ensures <2mV voltage drop at maximum load.
Specifications
- Product Status: Active
- Contact Type: Sleeve & Plunger (Pogo Pins)
- Mounting Type: Through Hole, Solder Cup
- Maximum Working Height: 0.222" (5.65mm)
- Recommended Working Height: -
- Minimum Working Height: 0.173" (4.40mm)
- Pad Layout Dimension: Circular - 0.067" (1.70mm) (TH)
- Operating Force - Initial: 20.39gf
- Operating Force - Mid Compression: 91.77gf
- Plunger Size: 0.040" (1.02mm) Dia
- Features: -
- Mating Cycles: 40000
- Contact Material: Brass Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
