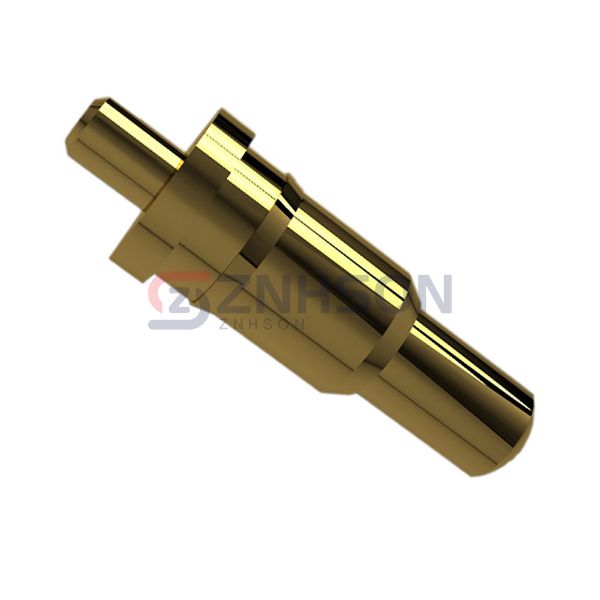

90158-AS
Preci-Dip
Preci-Dip
CONTACT SPRING LOADED SMD GOLD
$0.79
Available to order
Reference Price (USD)
1+
$0.64000
10+
$0.60300
25+
$0.54280
50+
$0.48260
100+
$0.46250
250+
$0.42224
500+
$0.40214
1,000+
$0.33177
2,500+
$0.30160
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 90158-AS from Preci-Dip redefines reliability in Spring Loaded Contacts for high-density interconnect challenges. Featuring patented anti-sticking coatings and dual-spring overload protection, these Pogo Pins maintain stable contact resistance across 50,000 mating cycles. Our specialized Contacts collection serves medical imaging equipment (MRI probe connections), semiconductor wafer testing, and military-grade communications gear. Implementation examples include: automated drug discovery instruments, LiDAR sensor calibration jigs, and missile guidance system test points. With current ratings to 10A (per pin) and customizable lengths from 2mm-15mm, 90158-AS solves complex connectivity challenges in space-constrained, harsh environment applications.
Specifications
- Product Status: Active
- Contact Type: Sleeve & Plunger (Pogo Pins)
- Mounting Type: Through Hole
- Maximum Working Height: 0.177" (4.50mm)
- Recommended Working Height: -
- Minimum Working Height: 0.122" (3.10mm)
- Pad Layout Dimension: Circular - 0.072" (1.83mm) (TH)
- Operating Force - Initial: 25.49gf
- Operating Force - Mid Compression: 61.18gf
- Plunger Size: 0.042" (1.07mm) Dia
- Features: -
- Mating Cycles: 40000
- Contact Material: Brass Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 20.0µin (0.51µm)
