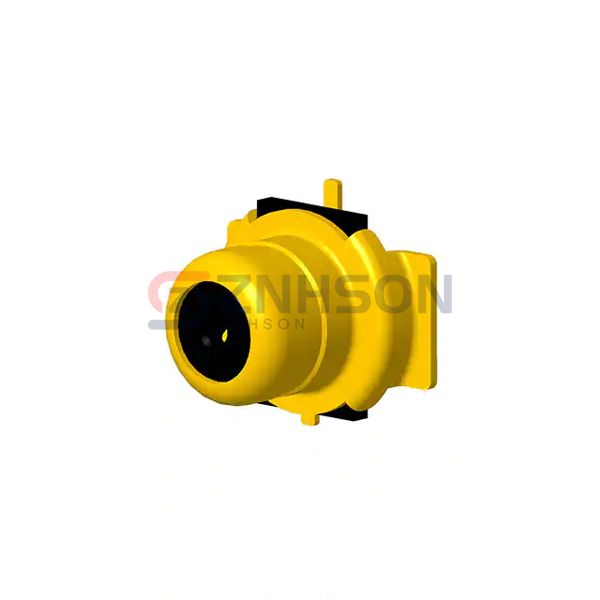

902-9224
Amphenol RF
Amphenol RF
RF MICRO-SWITCH PCB STRAIGHT JAC
$1.66
Available to order
Reference Price (USD)
1,200+
$0.91800
2,400+
$0.86400
6,000+
$0.82620
8,400+
$0.81000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for excellence, the 902-9224 from Amphenol RF sets new standards in Coaxial Connectors (RF) performance. These connectors utilize ultra-precision machining to achieve consistent 50 or 75 impedance matching across all mating cycles. The product line includes SMA, N-type, TNC, and BNC variants with options for straight, right-angle, and bulkhead mounting. Specialized versions feature phase-matched designs for critical array applications. Key industries served include: Satellite communication ground stations Electronic warfare systems High-speed data acquisition systems Microwave radio links. The 902-9224 series stands out with its hybrid design combining the durability of metal connectors with the weight savings of composite materials, ideal for airborne electronic systems.
Specifications
- Product Status: Active
- Connector Style: Micro RF
- Connector Type: Jack, Female Socket
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 50Ohm
- Mounting Type: Surface Mount
- Mounting Feature: -
- Cable Group: -
- Fastening Type: Push-Pull
- Frequency - Max: 2.5 GHz
- Number of Ports: 1
- Features: Full Detent
- Housing Color: Gold
- Ingress Protection: -
- Center Contact Material: Copper Alloy
