917845-1
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

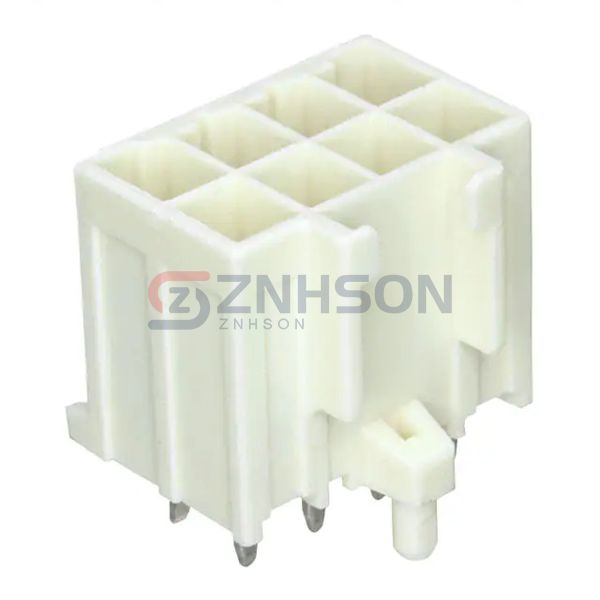

CONN HEADER VERT 8POS 3.96MM
$3.35
Available to order
Reference Price (USD)
1+
$2.76000
10+
$2.64800
25+
$2.42760
50+
$2.31700
100+
$2.20670
250+
$1.93088
500+
$1.87572
1,000+
$1.59989
2,500+
$1.48955
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 917845-1 by TE Connectivity AMP Connectors is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 917845-1 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. TE Connectivity AMP Connectors ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Tab
- Pitch - Mating: 0.156" (3.96mm)
- Number of Positions: 8
- Number of Rows: 2
- Row Spacing - Mating: 0.181" (4.60mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.150" (3.81mm)
- Overall Contact Length: -
- Insulation Height: 0.575" (14.60mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA66), Nylon 6/6, Glass Filled
- Features: Board Guide
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: -
