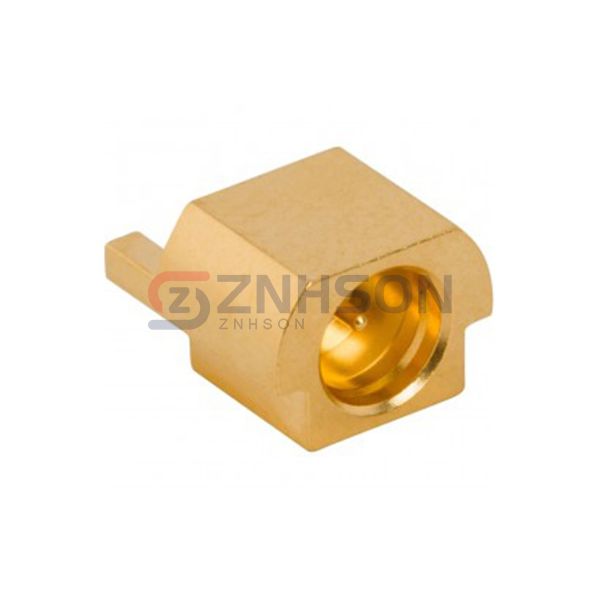

920-507J-52P
Amphenol RF
Amphenol RF
CONN HD-EFI JACK 50 OHM EDGE MNT
$6.22
Available to order
Reference Price (USD)
1+
$6.03000
10+
$5.79800
25+
$5.35200
50+
$5.12900
100+
$4.90600
250+
$4.34852
500+
$4.23700
1,000+
$3.67950
2,500+
$3.45650
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 920-507J-52P from Amphenol RF represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The 920-507J-52P variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: EFI, HD
- Connector Type: Jack, Female Socket
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 50Ohm
- Mounting Type: Board Edge, End Launch
- Mounting Feature: -
- Cable Group: -
- Fastening Type: Push-Pull
- Frequency - Max: 6 GHz
- Number of Ports: 1
- Features: Limited Detent
- Housing Color: Gold
- Ingress Protection: -
- Center Contact Material: Brass
Related Products
Amphenol RF
919-118J-51P
Bulgin
RF240A2PEGDO
TE Connectivity AMP Connectors
5-1634552-1
Pasternack
PE45564
Amphenol ICC (Commercial Products)
HSDNASPPCB14WBA
Amphenol SV Microwave
M39012/56-3028
Amphenol RF
112488
Bulgin
RFSMAA2JEGDGCI
Cinch Connectivity Solutions Trompeter

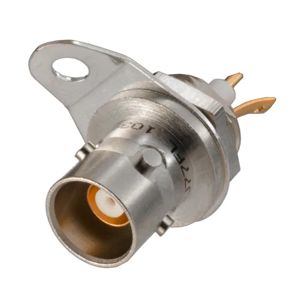

BJ77FL
