929400-01-28-RK
3M
3M
CONN HEADER VERT 28POS 2.54MM
$2.52
Available to order
Reference Price (USD)
1+
$2.40000
10+
$2.17700
25+
$2.04360
50+
$1.95480
100+
$1.86590
250+
$1.68820
500+
$1.55492
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

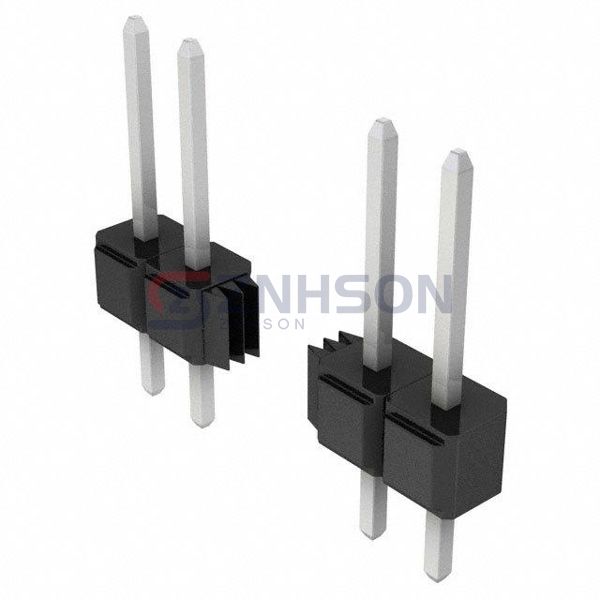

The 929400-01-28-RK by 3M is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. 3M delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 28
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.295" (7.49mm)
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: 0.535" (13.59mm)
- Insulation Height: 0.110" (2.79mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 200.0µin (5.08µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
