929647-01-06-EU
3M
3M
CONN HEADER VERT 6POS 2.54MM
$1.61
Available to order
Reference Price (USD)
1+
$1.54000
10+
$1.39600
25+
$1.31000
50+
$1.25320
100+
$1.19620
250+
$1.08224
500+
$0.99680
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

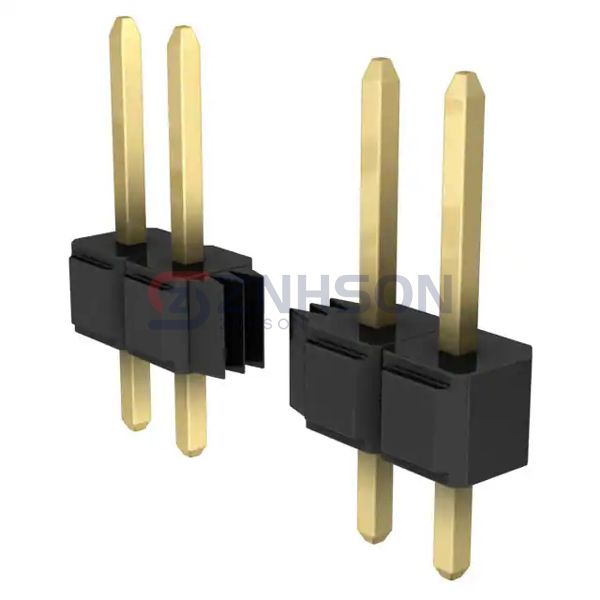

The 929647-01-06-EU from 3M is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the 929647-01-06-EU offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose 3M for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 6
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.235" (5.97mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: 0.445" (11.30mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
Related Products
Amphenol ICC (FCI)
77315-824-10LF
TE Connectivity AMP Connectors
2-1123723-7
Samtec Inc.
TSM-114-01-L-SV-P
Molex
0901301324
TE Connectivity AMP Connectors
4-103777-0-37
Samtec Inc.
TSM-110-01-L-SV-P
Samtec Inc.
ESHF-110-01-L-D-RA
Preci-Dip
832-10-072-20-001101

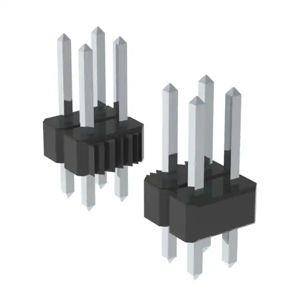

Sullins Connector Solutions
