929647-04-26-EU
3M
3M
CONN HEADER VERT 26POS 2.54MM
$6.22
Available to order
Reference Price (USD)
1+
$6.17000
10+
$5.92400
25+
$5.43000
50+
$5.18340
100+
$4.93650
250+
$4.31948
500+
$4.19606
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 929647-04-26-EU by 3M is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. 3M delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 26
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.235" (5.97mm)
- Contact Length - Post: 0.510" (12.95mm)
- Overall Contact Length: 0.845" (21.46mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
Related Products
Preci-Dip
802-80-064-30-480101
Samtec Inc.
HTSW-103-14-TM-S
TE Connectivity AMP Connectors
1-292253-1
Samtec Inc.
TMM-115-06-L-D-SM-A-P-TR
Preci-Dip
832-10-080-10-001101
Molex

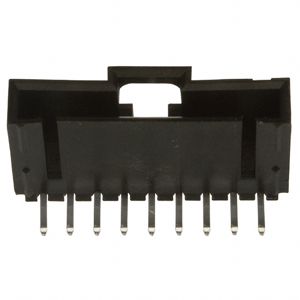

0705530043
Samtec Inc.

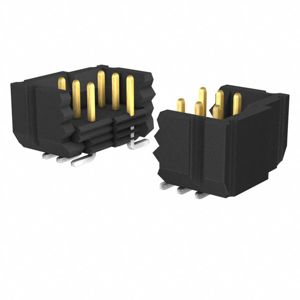

BKT-119-01-L-V-S-TR
Molex

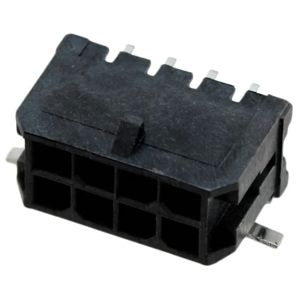

0430450810
Preci-Dip

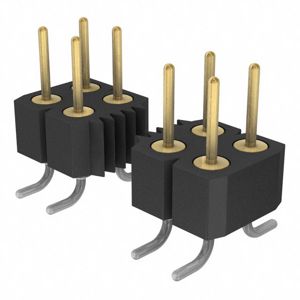

450-V3-226-00-106101
