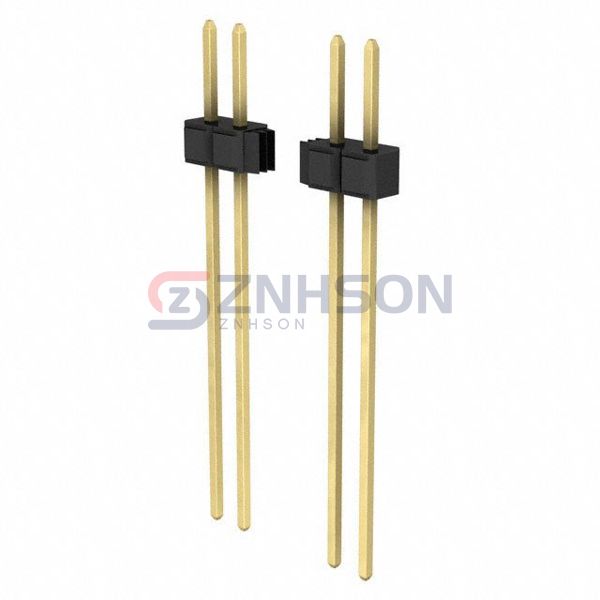

929647-07-05-EU
3M
3M
CONN HEADER VERT 5POS 2.54MM
$1.45
Available to order
Reference Price (USD)
1+
$1.38000
10+
$1.21000
25+
$1.13920
50+
$1.09180
100+
$1.04430
250+
$0.94936
500+
$0.85440
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the 929647-07-05-EU rectangular connector header by 3M. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the 929647-07-05-EU ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust 3M for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 5
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.235" (5.97mm)
- Contact Length - Post: 0.910" (23.11mm)
- Overall Contact Length: 1.245" (31.62mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
Related Products
Samtec Inc.
FTSH-108-02-LM-DV-P-TR
Molex
0702871095
TE Connectivity AMP Connectors
1-147323-1
Samtec Inc.

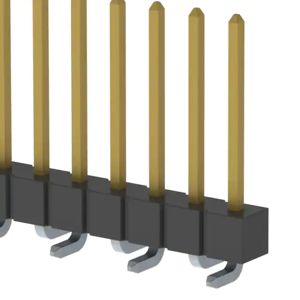

TSM-116-03-S-SV-P-TR
Sullins Connector Solutions

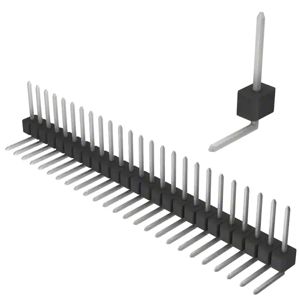

PEC25SGBN
Harwin Inc.

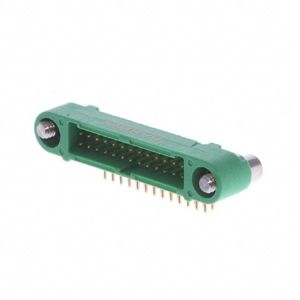

G125-MH12605M3P
Sullins Connector Solutions

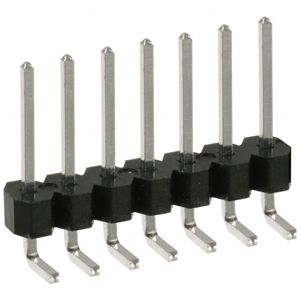

PEC07SGAN
Samtec Inc.

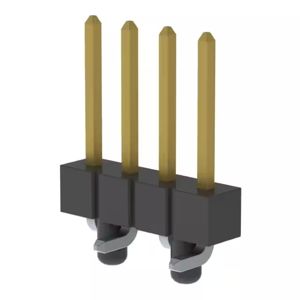

TSM-104-02-F-SV-A
Amphenol ICC (FCI)

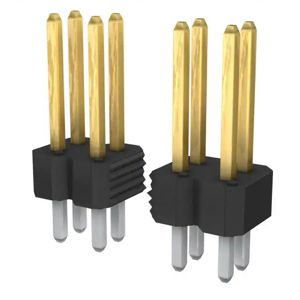

77313-822-34LF
