929647-08-23-EU
3M
3M
CONN HEADER VERT 23POS 2.54MM
$5.73
Available to order
Reference Price (USD)
1+
$5.46000
10+
$5.24000
25+
$4.80360
50+
$4.58520
100+
$4.36690
250+
$3.82108
500+
$3.71190
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the 929647-08-23-EU rectangular connector header from 3M, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the 929647-08-23-EU adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. 3M guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 23
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.235" (5.97mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
9-102975-0-07
Mill-Max Manufacturing Corp.
852-10-092-20-001000
Samtec Inc.
TSM-102-04-L-SH
Amphenol ICC (FCI)
77313-401-14LF
Molex
0022289042
Samtec Inc.
TSM-119-03-L-DV
Molex
0417910853
Samtec Inc.
ZSS-105-01-L-D-460-LL
Samtec Inc.

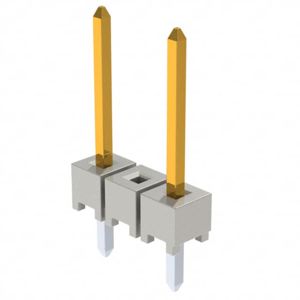

HTSW-202-14-L-S
