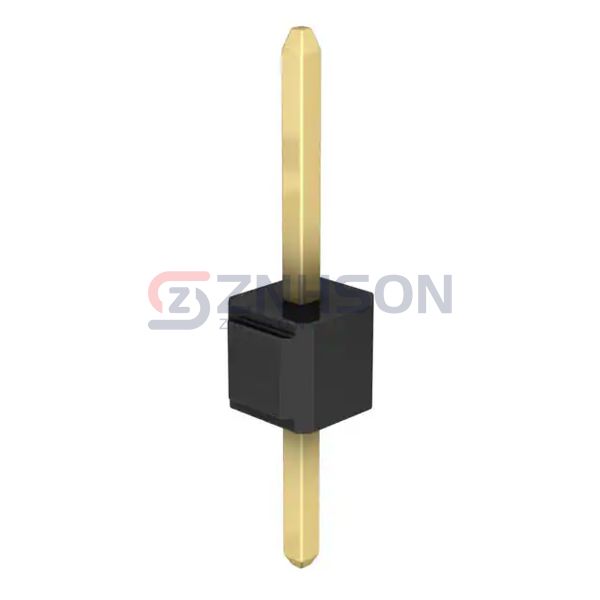

929647-09-01-I
3M
3M
CONN HEADER VERT 1POS
$0.48
Available to order
Reference Price (USD)
1+
$0.45000
10+
$0.42800
25+
$0.36720
50+
$0.31220
100+
$0.29990
250+
$0.26928
500+
$0.25704
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 929647-09-01-I by 3M is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 929647-09-01-I supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. 3M ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: -
- Number of Positions: 1
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.235" (5.97mm)
- Contact Length - Post: 0.145" (3.68mm)
- Overall Contact Length: 0.480" (12.19mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Polybutylene Terephthalate (PBT), Polyester, Glass Filled
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
