929665-04-29-I
3M
3M
CONN HEADER VERT 58POS 2.54MM
$10.66
Available to order
Reference Price (USD)
1+
$10.16000
10+
$9.71500
25+
$8.83160
50+
$8.38980
100+
$8.16910
250+
$7.28596
500+
$6.84438
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 929665-04-29-I male pin header by 3M offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose 3M for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 58
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.235" (5.97mm)
- Contact Length - Post: 0.510" (12.95mm)
- Overall Contact Length: 0.845" (21.46mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Polybutylene Terephthalate (PBT), Polyester, Glass Filled
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
172106-3
Samtec Inc.
TSM-115-01-L-DH-A-002-P
Samtec Inc.
HTSW-120-08-L-S-RA
Harwin Inc.
M20-9761342
Samtec Inc.
TSM-105-02-F-DV-A-TR
Samtec Inc.
MMT-117-02-S-MT
Amphenol ICC (FCI)
67997-426
Samtec Inc.
ZSS-110-04-G-D-757
TE Connectivity AMP Connectors

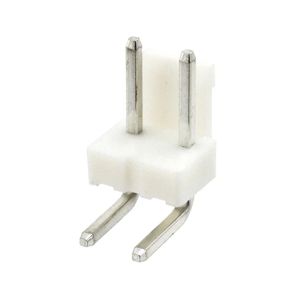

1744048-2
