929667-02-13-EU
3M
3M
CONN HEADER R/A 26POS 2.54MM
$6.01
Available to order
Reference Price (USD)
1+
$5.96000
10+
$5.72400
25+
$5.24720
50+
$5.00860
100+
$4.77010
250+
$4.17388
500+
$4.05462
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

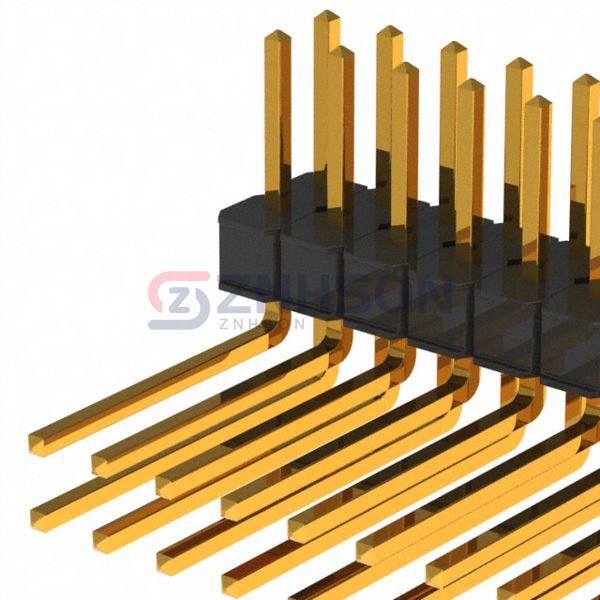

The 929667-02-13-EU by 3M is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 929667-02-13-EU supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. 3M ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 26
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.235" (5.97mm)
- Contact Length - Post: 0.405" (10.29mm)
- Overall Contact Length: -
- Insulation Height: 0.215" (5.45mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
