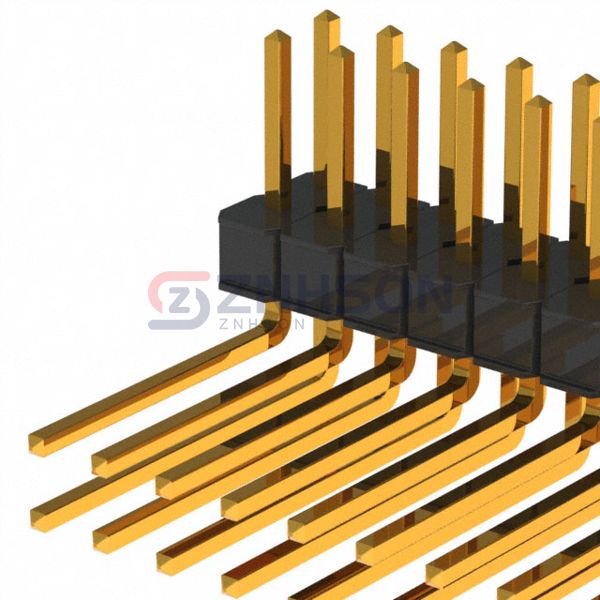

929667-02-20-EU
3M
3M
CONN HEADER R/A 40POS 2.54MM
$8.86
Available to order
Reference Price (USD)
1+
$8.44000
10+
$8.07300
25+
$7.33880
50+
$6.97180
100+
$6.78830
250+
$6.05440
500+
$5.68746
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 929667-02-20-EU by 3M is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. 3M delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 40
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.235" (5.97mm)
- Contact Length - Post: 0.405" (10.29mm)
- Overall Contact Length: -
- Insulation Height: 0.215" (5.45mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
Related Products
Preci-Dip
854-80-036-20-001101
TE Connectivity AMP Connectors
2842154-4
TE Connectivity AMP Connectors
281696-3
Molex
5023520900
Samtec Inc.
TSM-105-01-T-DH-008

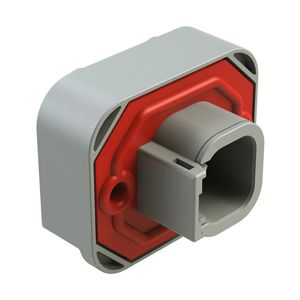

Amphenol Sine Systems Corp
ATM15-4P-BM03

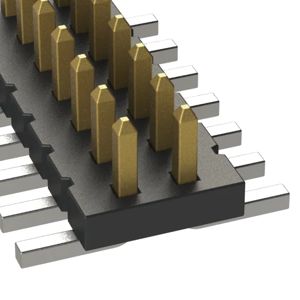

Samtec Inc.
FTS-130-03-F-DV

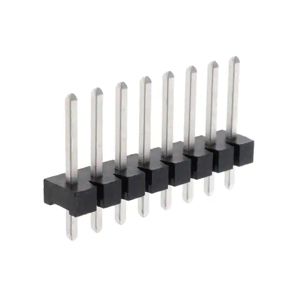

Samtec Inc.
FWJ-08-01-T-S

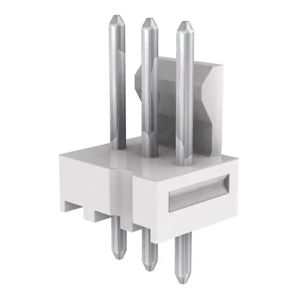

Molex
