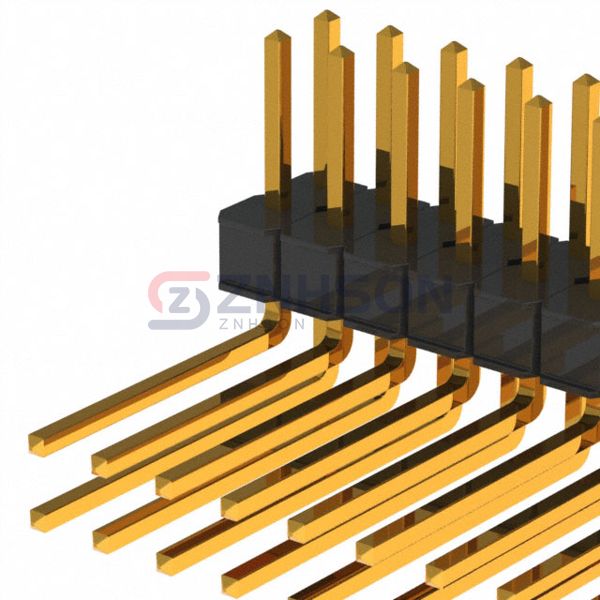

929667-02-28-EU
3M
3M
CONN HEADER R/A 56POS 2.54MM
$11.87
Available to order
Reference Price (USD)
1+
$11.30000
10+
$10.27400
25+
$10.01720
50+
$9.24680
100+
$8.73300
250+
$7.96244
500+
$7.44876
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the 929667-02-28-EU rectangular connector header by 3M. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the 929667-02-28-EU ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust 3M for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 56
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.235" (5.97mm)
- Contact Length - Post: 0.405" (10.29mm)
- Overall Contact Length: -
- Insulation Height: 0.215" (5.45mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
Related Products
JST Sales America Inc.
S12B-XH-A-1(LF)(SN)
Samtec Inc.
IPL1-102-01-H-D-K
Amphenol ICC (FCI)
77313-124-10LF
Samtec Inc.
FTSH-115-03-F-DV
Phoenix Contact
1156864
Samtec Inc.
TFC-120-22-LM-D-K
Amphenol Sine Systems Corp
AT04-12PC-BM02

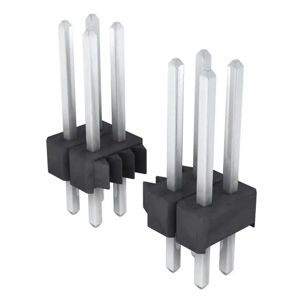

Preci-Dip
892-80-074-10-003101
Amphenol ICC (FCI)

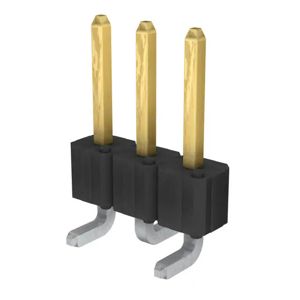

54201-G0803ALF
