929700-11-16
3M
3M
CONN HEADER VERT 16POS 2.54MM
$1.75
Available to order
Reference Price (USD)
1+
$1.67000
10+
$1.51600
25+
$1.42280
50+
$1.36100
100+
$1.29920
250+
$1.17548
500+
$1.08268
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

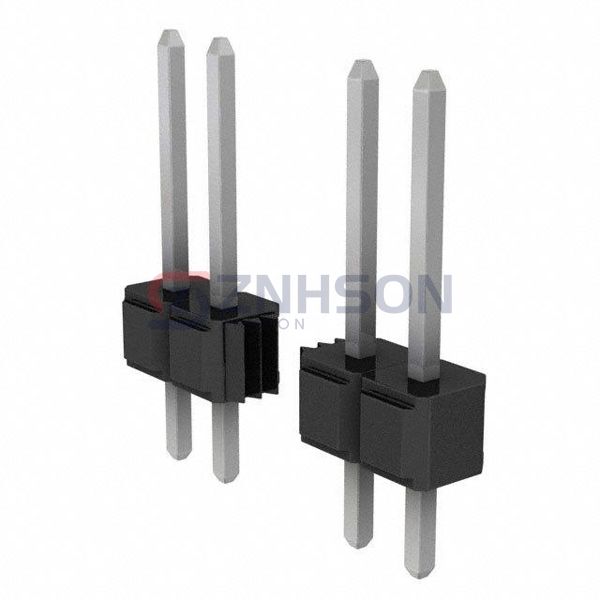

Discover the 929700-11-16 rectangular connector header from 3M, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the 929700-11-16 adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. 3M guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 16
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.125" (3.18mm)
- Overall Contact Length: 0.543" (13.80mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin-Lead
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: -
- Contact Material: Copper Alloy
- Insulation Material: Polybutylene Terephthalate (PBT), Polyester, Glass Filled
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
