929710-06-24-RK
3M
3M
CONN HEADER VERT 48POS 2.54MM
$5.46
Available to order
Reference Price (USD)
1+
$5.20000
10+
$4.99200
25+
$4.57600
50+
$4.36800
100+
$4.16000
250+
$3.64000
500+
$3.53600
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the 929710-06-24-RK rectangular connector header by 3M. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the 929710-06-24-RK ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust 3M for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 48
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.710" (18.03mm)
- Overall Contact Length: 1.128" (28.65mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 200.0µin (5.08µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
Related Products
Samtec Inc.
MMT-109-01-S-MT
JST Sales America Inc.
BM06B-ACHFKS-GACN-ETF(LF)(SN)
Samtec Inc.
TSM-107-03-T-DH-P-TR
TE Connectivity AMP Connectors
4-1123723-3
Mill-Max Manufacturing Corp.
852-10-022-30-001000
TE Connectivity AMP Connectors
640454-4
Preci-Dip
890-80-012-10-003101
Molex
5016453820
Samtec Inc.

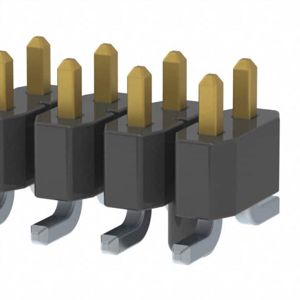

TSM-109-05-L-DV-A
