929710-10-01
3M
3M

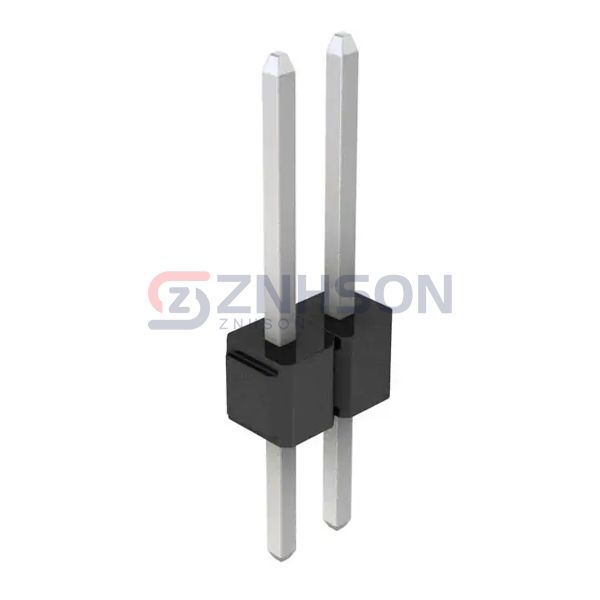

CONN HEADER VERT 2POS
$0.87
Available to order
Reference Price (USD)
1+
$0.87000
10+
$0.77800
100+
$0.64030
500+
$0.50616
1,000+
$0.43451
5,000+
$0.39640
10,000+
$0.38115
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 929710-10-01 by 3M is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 929710-10-01 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. 3M ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Discontinued at Digi-Key
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: -
- Number of Positions: 2
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.175" (4.45mm)
- Overall Contact Length: 0.593" (15.07mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin-Lead
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: -
- Contact Material: Copper Alloy
- Insulation Material: Polybutylene Terephthalate (PBT), Polyester, Glass Filled
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
