929715-03-03-I

Manufacturer

Description:

CONN HEADER VERT 6POS 2.54MM

Datasheet:

929715-03-03-I Datasheet

$1.85

Available to order

Reference Price (USD)

$1.76000

10+

$1.59500

25+

$1.49760

50+

$1.43260

100+

$1.36750

250+

$1.23728

500+

$1.13960

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

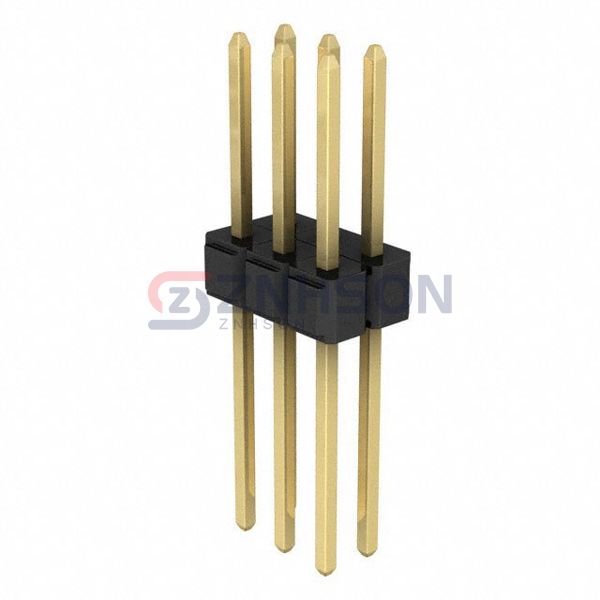

The 929715-03-03-I by 3M is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 929715-03-03-I supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. 3M ensures each connector meets rigorous quality standards for global compliance.

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 6
Number of Rows: 2
Row Spacing - Mating: 0.100" (2.54mm)
Number of Positions Loaded: All
Style: Board to Board
Shrouding: Unshrouded
Mounting Type: Through Hole
Termination: Solder
Fastening Type: Push-Pull
Contact Length - Mating: 0.318" (8.08mm)
Contact Length - Post: 0.410" (10.41mm)
Overall Contact Length: 0.828" (21.03mm)
Insulation Height: 0.100" (2.54mm)
Contact Shape: Square
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Contact Material: Copper Alloy
Insulation Material: Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Features: -
Operating Temperature: -40°C ~ 105°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): 2.5A
Voltage Rating: -
