929730-01-01
3M
3M
CONN HEADER R/A 1POS
$0.15
Available to order
Reference Price (USD)
1+
$0.14000
10+
$0.13500
25+
$0.10080
50+
$0.08640
100+
$0.08350
250+
$0.07200
500+
$0.06912
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

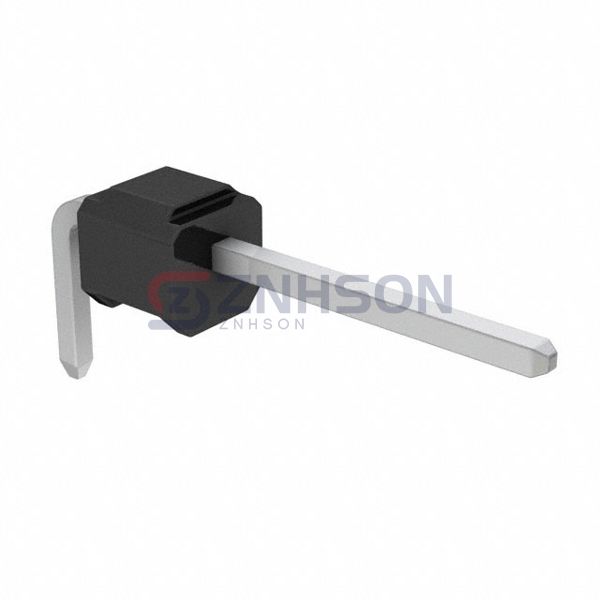

The 929730-01-01 male pin header by 3M offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose 3M for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: -
- Number of Positions: 1
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: -
- Insulation Height: 0.115" (2.92mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin-Lead
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: -
- Contact Material: Copper Alloy
- Insulation Material: Polybutylene Terephthalate (PBT), Polyester, Glass Filled
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
