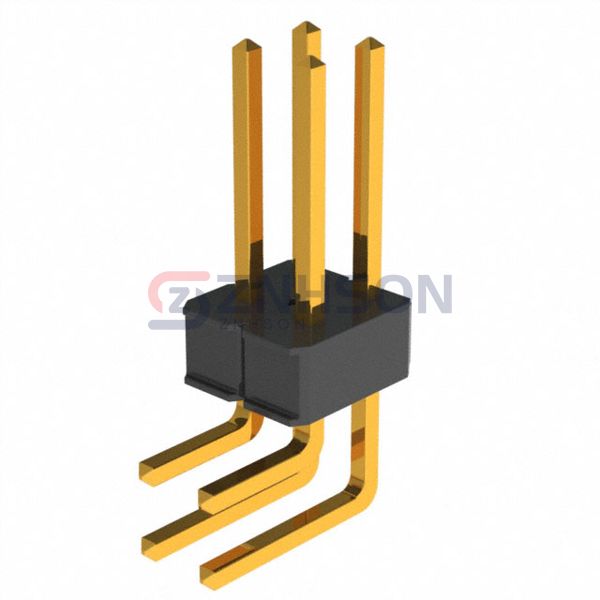

929745-01-02-I
3M
3M
CONN HEADER R/A 4POS 2.54MM
$1.32
Available to order
Reference Price (USD)
1+
$1.26000
10+
$1.10800
25+
$1.04320
50+
$0.99980
100+
$0.95630
250+
$0.86936
500+
$0.78240
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 929745-01-02-I by 3M is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. 3M delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 4
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: -
- Insulation Height: 0.215" (5.45mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Polybutylene Terephthalate (PBT), Polyester, Glass Filled
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
Related Products
Preci-Dip
800-V3-029-20-101101
Samtec Inc.
EHF-120-01-FM-D-RA
Samtec Inc.
TSM-103-01-S-SV-P-TR
Molex
0702800690
Samtec Inc.
FTS-112-02-LM-D
Samtec Inc.
FTSH-124-02-L-D
TE Connectivity AMP Connectors
146129-1
Molex
0874380543
Samtec Inc.

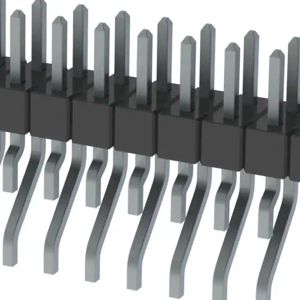

MMT-150-01-T-DH
