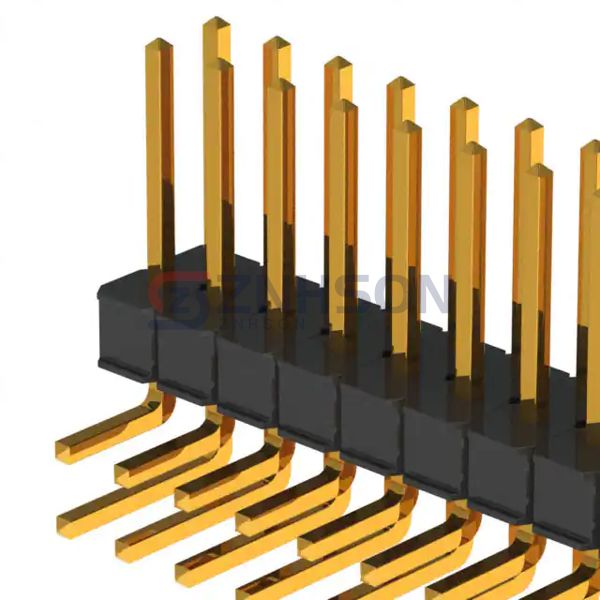

929745-01-11-I
3M
3M
CONN HEADER R/A 22POS 2.54MM
$6.02
Available to order
Reference Price (USD)
1+
$5.98000
10+
$5.73800
25+
$5.25960
50+
$5.02040
100+
$4.78130
250+
$4.18368
500+
$4.06414
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 929745-01-11-I by 3M is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. 3M delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 22
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: -
- Insulation Height: 0.215" (5.45mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Polybutylene Terephthalate (PBT), Polyester, Glass Filled
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
Related Products
Samtec Inc.
TSW-125-08-G-S
Molex
1722981108
Samtec Inc.
TSW-104-06-L-S
Samtec Inc.
FTS-102-01-L-D
Molex
0416710019
Adam Tech
HPH1-B-11-UA
TE Connectivity AMP Connectors
103638-3
Samtec Inc.

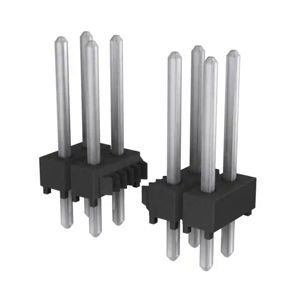

TSW-124-14-T-D
