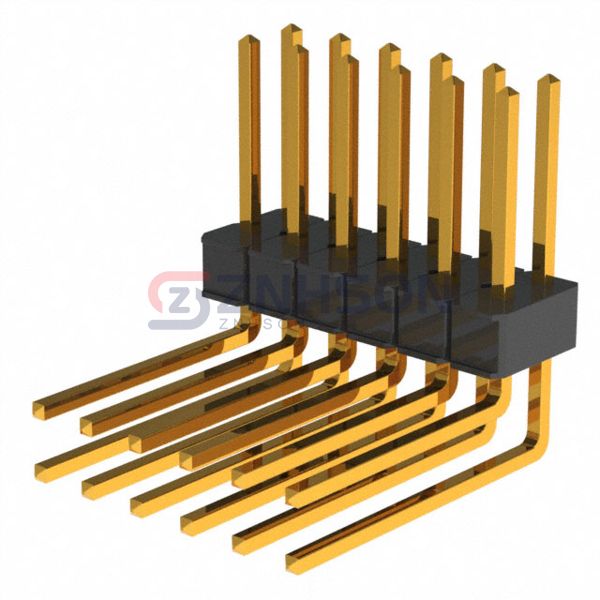

929745-02-06-EU
3M
3M
CONN HEADER R/A 12POS 2.54MM
$2.22
Available to order
Reference Price (USD)
1+
$2.12000
10+
$1.92100
25+
$1.80320
50+
$1.72480
100+
$1.64640
250+
$1.48960
500+
$1.37200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 929745-02-06-EU by 3M is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. 3M delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.405" (10.29mm)
- Overall Contact Length: -
- Insulation Height: 0.215" (5.45mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
Related Products
Samtec Inc.
BBL-115-G-F
Samtec Inc.
FTSH-105-01-F-DV-007-P-TR
Samtec Inc.
BBD-108-G-C
Amphenol ICC (FCI)
20021122-00010T4LF
Molex
0702871270
Hirose Electric Co Ltd
HNC2-2.5P-3DSL(01)
Samtec Inc.
IPT1-125-01-L-D
Samtec Inc.

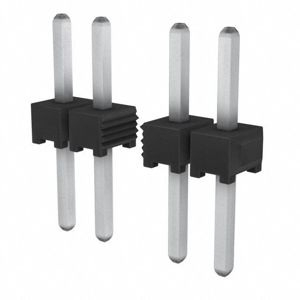

TMM-110-05-T-S
