929834-04-12
3M
3M
CONN HEADER VERT 12POS 2.54MM
$1.37
Available to order
Reference Price (USD)
1+
$1.40000
10+
$1.23200
25+
$1.15960
50+
$1.11140
100+
$1.06300
250+
$0.96640
500+
$0.86976
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

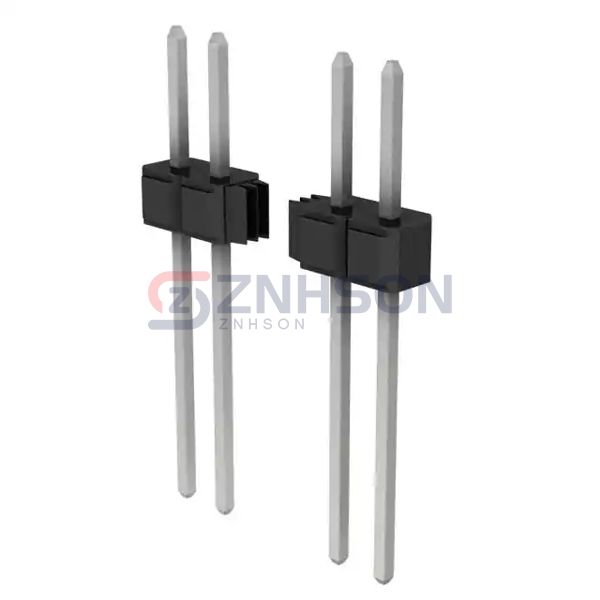

Optimize your interconnections with the 929834-04-12 rectangular connector header from 3M. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the 929834-04-12 is perfect for automotive, industrial, and consumer electronics. 3M ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 12
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.235" (5.97mm)
- Contact Length - Post: 0.510" (12.95mm)
- Overall Contact Length: 0.845" (21.46mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin-Lead
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: -
- Contact Material: Copper Alloy
- Insulation Material: Polybutylene Terephthalate (PBT), Polyester, Glass Filled
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
