929834-05-10-RK
3M
3M
CONN HEADER VERT 10POS 2.54MM
$1.05
Available to order
Reference Price (USD)
1+
$1.00000
10+
$0.87700
25+
$0.82560
50+
$0.79120
100+
$0.75680
250+
$0.68800
500+
$0.61920
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

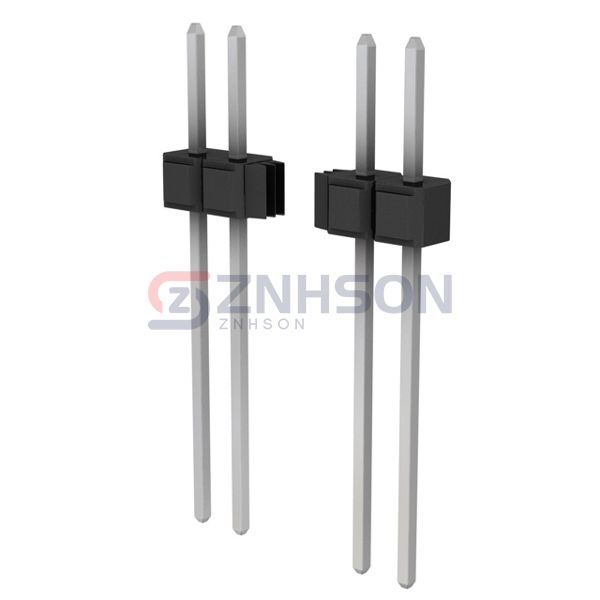

The 929834-05-10-RK by 3M is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. 3M delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 10
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.235" (5.97mm)
- Contact Length - Post: 0.610" (15.49mm)
- Overall Contact Length: 0.945" (24.00mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 200.0µin (5.08µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
2-103639-9
Samtec Inc.
IPBT-112-H1-T-D-RA-GP
Omron Electronics Inc-EMC Div
XG4A-6434
Amphenol ICC (FCI)
78548-202HLF
TE Connectivity AMP Connectors
770968-1
Molex
0705450141
Molex

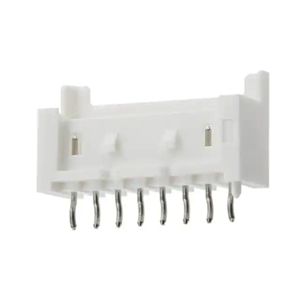

0534761310
Sullins Connector Solutions

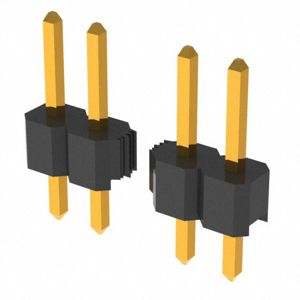

PRPC018SAAN-RC
