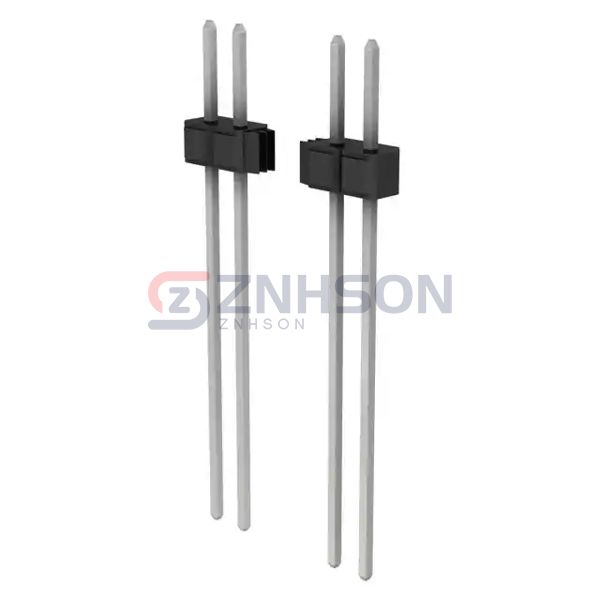

929834-07-23-RK
3M
3M
CONN HEADER VERT 23POS 2.54MM
$2.24
Available to order
Reference Price (USD)
1+
$2.14000
10+
$1.93800
25+
$1.81960
50+
$1.74060
100+
$1.66150
250+
$1.50328
500+
$1.38460
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 929834-07-23-RK by 3M is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. 3M delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 23
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.235" (5.97mm)
- Contact Length - Post: 0.910" (23.11mm)
- Overall Contact Length: 1.245" (31.62mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 200.0µin (5.08µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
Related Products
Preci-Dip
450-80-232-00-013101
Sullins Connector Solutions
NRPN202MAMS-RC
Samtec Inc.
FTSH-107-04-L-DH-TR
Samtec Inc.
FTMH-113-02-L-DH-K-TR
Samtec Inc.
TSW-144-26-T-D
3M

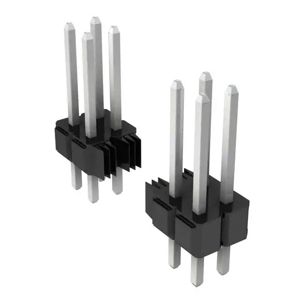

929710-11-32
Samtec Inc.

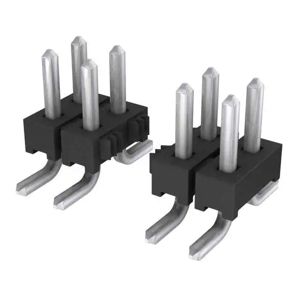

TMM-122-05-T-D-SM
Samtec Inc.

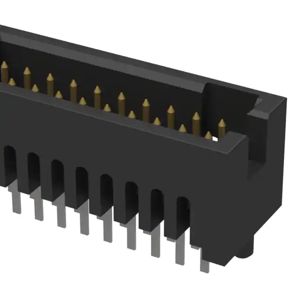

TFC-145-31-F-D-A
Sullins Connector Solutions

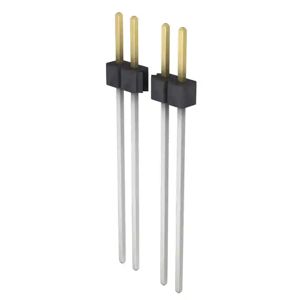

PBC25SAFN
