929836-05-21-RK
3M
3M
CONN HEADER VERT 42POS 2.54MM
$2.65
Available to order
Reference Price (USD)
1+
$2.52000
10+
$2.41900
25+
$2.21760
50+
$2.11680
100+
$2.01600
250+
$1.76400
500+
$1.71360
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the 929836-05-21-RK rectangular connector header by 3M. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the 929836-05-21-RK ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust 3M for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 42
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.235" (5.97mm)
- Contact Length - Post: 0.610" (15.49mm)
- Overall Contact Length: 0.945" (24.00mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 200.0µin (5.08µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
Related Products
CNC Tech
3110-16-001-13-00
Samtec Inc.
FTS-136-01-L-DV
Sullins Connector Solutions
NREC001SABC-M30RC
Samtec Inc.
TFC-135-12-F-D-A-K
On Shore Technology Inc.
300HBT2R06
Harwin Inc.
M80-5101222
Samtec Inc.

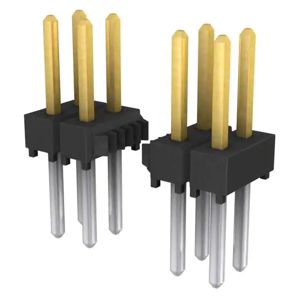

TSW-112-08-L-D
