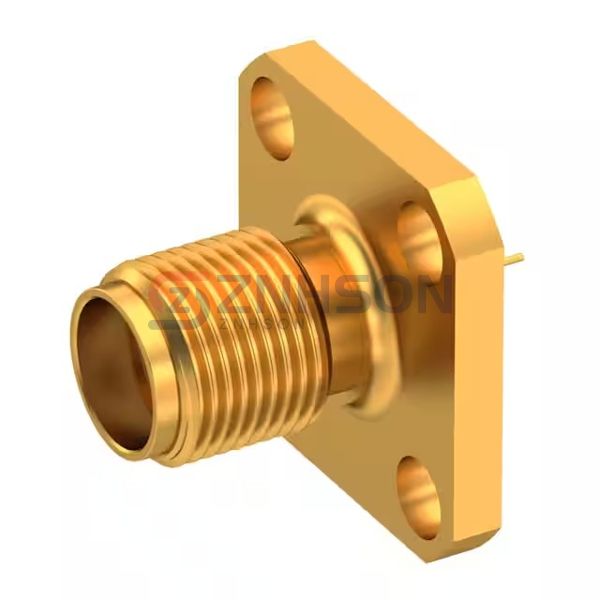

9304-1113-014
Radiall USA, Inc.
Radiall USA, Inc.
SMA / STRAIGHT JACK RECEPTACLE F
$26.32
Available to order
Reference Price (USD)
1+
$26.31920
500+
$26.056008
1000+
$25.792816
1500+
$25.529624
2000+
$25.266432
2500+
$25.00324
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Radiall USA, Inc.'s 9304-1113-014 series elevates Coaxial Connectors (RF) technology with groundbreaking features. These connectors employ hyperbolic contact profiles that ensure consistent electrical performance through extended mating cycles. The product range includes EMI-filtered versions for sensitive electronic environments and high-voltage variants for specialized applications. Notable characteristics: Frequency range from DC to 70GHz Multi-finger beryllium copper contacts Corrosion-resistant stainless steel bodies Customizable keying options. The 9304-1113-014 is extensively used in: Electronic intelligence systems Particle accelerator components Millimeter-wave imaging arrays Submarine communication systems. Its patented anti-microphonic design makes it particularly suitable for vibration-intensive aerospace applications.
Specifications
- Product Status: Active
- Connector Style: SMA
- Connector Type: Jack, Female Socket
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 50Ohm
- Mounting Type: Panel Mount, Through Hole
- Mounting Feature: Flange
- Cable Group: -
- Fastening Type: Threaded
- Frequency - Max: 18 GHz
- Number of Ports: 1
- Features: Extended Insulation
- Housing Color: Gold
- Ingress Protection: -
- Center Contact Material: Beryllium Copper
