9311-60039-TD
Amphenol SV Microwave
Amphenol SV Microwave

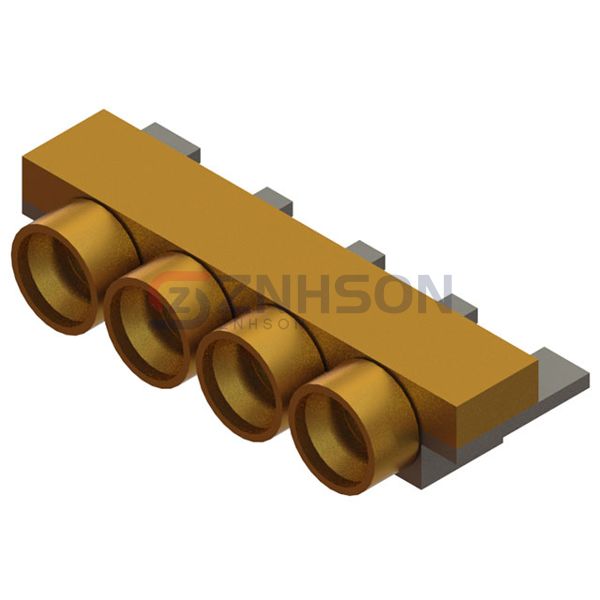

CONN SMPM PLUG STR 50OHM EDGEMNT
$0.00
Available to order
Reference Price (USD)
25+
$93.00000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 9311-60039-TD from Amphenol SV Microwave represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The 9311-60039-TD variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: SMPM
- Connector Type: Plug, Male Pin
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 50Ohm
- Mounting Type: Board Edge, End Launch
- Mounting Feature: -
- Cable Group: -
- Fastening Type: Snap-On
- Frequency - Max: 65 GHz
- Number of Ports: 4
- Features: Full Detent
- Housing Color: Gold
- Ingress Protection: -
- Center Contact Material: Beryllium Copper
