951135-8622-AR
3M
3M
CONN HEADER VERT 35POS 2MM
$2.60
Available to order
Reference Price (USD)
1+
$2.70000
10+
$2.47200
25+
$2.33480
50+
$2.24340
100+
$2.15170
250+
$1.96856
500+
$1.83120
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

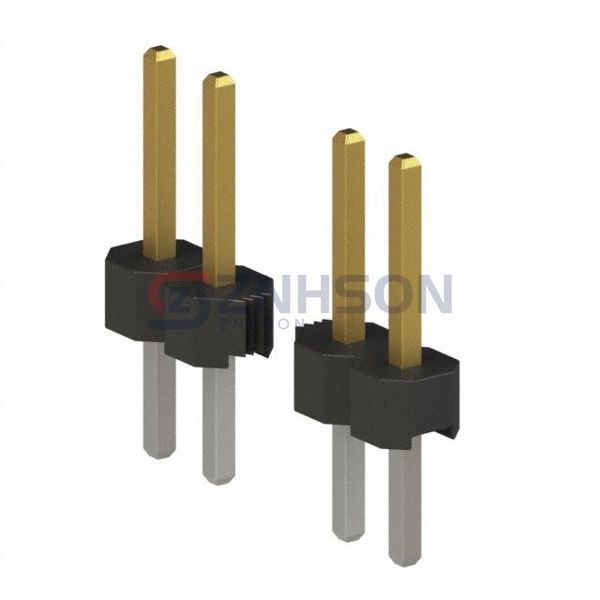

The 951135-8622-AR male pin header by 3M offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose 3M for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 35
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.173" (4.40mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: 0.343" (8.70mm)
- Insulation Height: 0.060" (1.52mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A
- Voltage Rating: -
