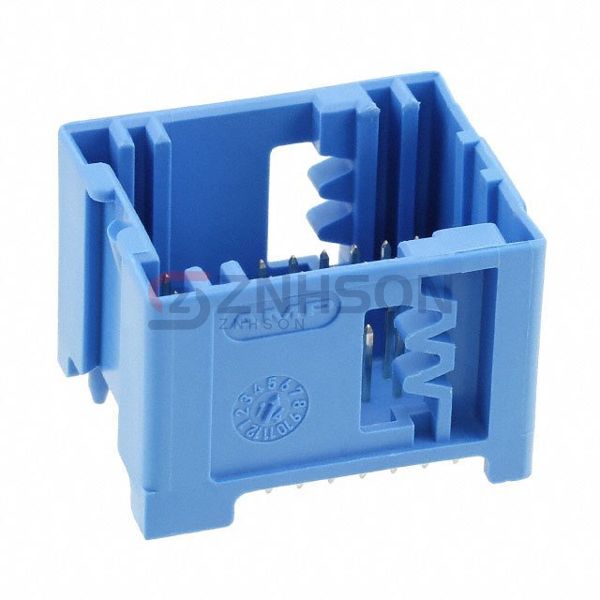

953118-4
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 40POS 2.54MM
$4.35
Available to order
Reference Price (USD)
1+
$7.42000
10+
$7.10700
100+
$5.87100
500+
$4.94400
1,000+
$4.32600
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the 953118-4 rectangular connector header from TE Connectivity AMP Connectors. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the 953118-4 meets the highest industry standards. TE Connectivity AMP Connectors provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 40
- Number of Rows: 4
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.264" (6.70mm)
- Contact Length - Post: 0.115" (2.92mm)
- Overall Contact Length: -
- Insulation Height: 0.846" (21.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: -
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: Board Guide
- Operating Temperature: -40°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Blue
- Current Rating (Amps): -
- Voltage Rating: -
