961118-6404-AR
3M
3M

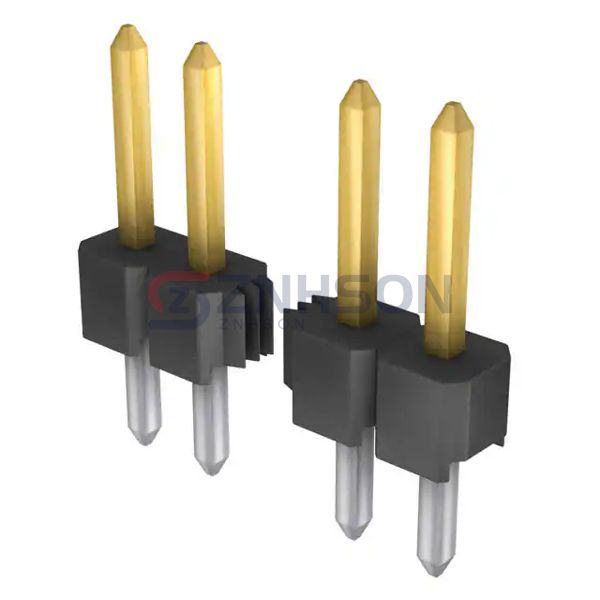

CONN HEADER VERT 18POS 2.54MM
$1.43
Available to order
Reference Price (USD)
1+
$1.49000
10+
$1.36100
25+
$1.28520
50+
$1.23480
100+
$1.18440
250+
$1.08360
500+
$1.00800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 961118-6404-AR by 3M is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. 3M delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 18
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.217" (5.50mm)
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: 0.445" (11.30mm)
- Insulation Height: 0.098" (2.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: -
- Operating Temperature: -25°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2A
- Voltage Rating: -
Related Products
Sullins Connector Solutions
PEC17SFBN
Samtec Inc.
TSM-105-02-S-SH-P
Samtec Inc.
TSW-125-08-L-D-RA
Samtec Inc.
FTSH-116-04-F-DH-C-TR
Preci-Dip
802-V3-064-30-001101
Molex
0022286293
HARTING
09185106924
Samtec Inc.
TSW-114-07-S-S
Samtec Inc.

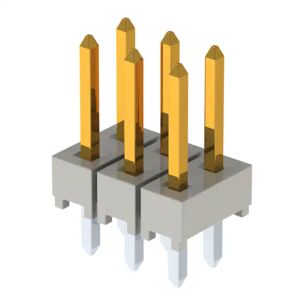

HTSW-103-07-SM-D
