9613-9523-002
Radiall USA, Inc.
Radiall USA, Inc.

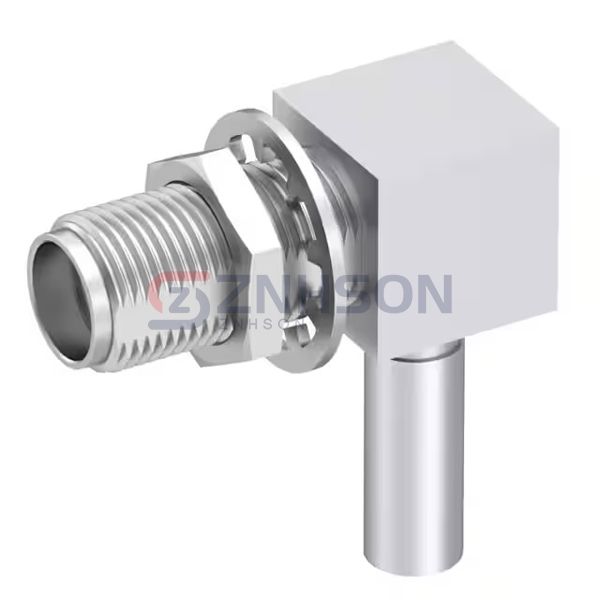

SMA / RIGHT ANGLE JACK FEMALE CR
$33.42
Available to order
Reference Price (USD)
1+
$33.41800
500+
$33.08382
1000+
$32.74964
1500+
$32.41546
2000+
$32.08128
2500+
$31.7471
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 9613-9523-002 from Radiall USA, Inc. represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The 9613-9523-002 variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: SMA
- Connector Type: Jack, Female Socket
- Contact Termination: Crimp
- Shield Termination: Crimp
- Impedance: 50Ohm
- Mounting Type: Panel Mount, Right Angle
- Mounting Feature: Bulkhead - Front Side Nut
- Cable Group: RG-178, 196
- Fastening Type: Threaded
- Frequency - Max: 12.4 GHz
- Number of Ports: 1
- Features: -
- Housing Color: Silver
- Ingress Protection: -
- Center Contact Material: Beryllium Copper
